5V49EE504NLGI - Renesas Electronics

Description: The 5V49EE504 is a programmable clock generator intended for high performance data-communications, telecommunications, consumer, and networking applications. There are four internal PLLs, each individually programmable, allowing for four unique non-integer-related frequencies. The frequencies are generated from a single reference clock. The reference clock can come from one of the two redundant clock inputs. Automatic or manual switchover function allows any one of the redundant clocks to be selected during

Download 5V49EE504NLGI Model

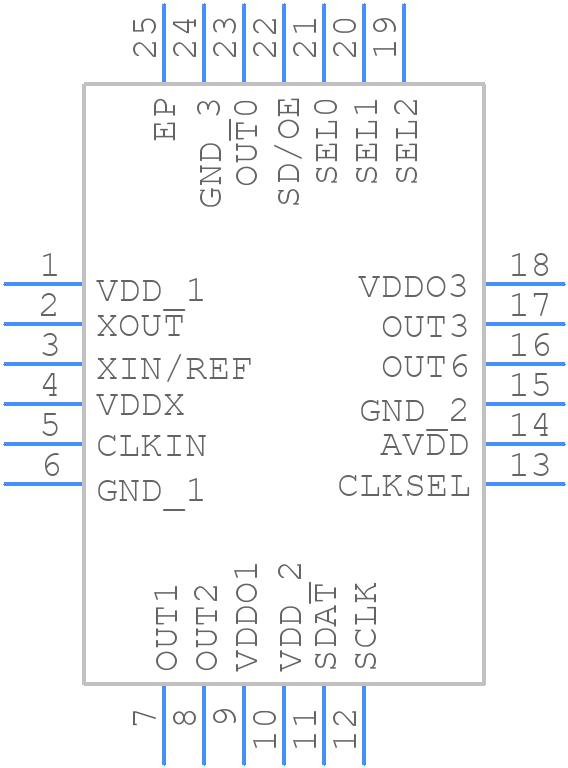

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
5V49EE504NLGI - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NLG24P1+
click to zoom
3D Models
5V49EE504NLGI - Renesas Electronics  - 3D model - Quad Flat No-Lead - NLG24P1+
click to zoom

5V49EE504NLGI Details

  • Manufacturer Part Number:

    5V49EE504NLGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    VFQFPN

  • Package Description:

    VFQFPN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    NLG24P1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-30 Code:

    S-XQCC-N24

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    200 MHz

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    200 MHz

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PROCESSOR SPECIFIC

5V49EE504NLGI Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 5V49EE504NLGI is -40°C to +85°C.
  • The clock input for the 5V49EE504NLGI can be configured using the Clock Control Register (CCR). The CCR allows you to select the clock source, clock frequency, and clock mode.
  • The maximum frequency for the 5V49EE504NLGI is 500 MHz.
  • The 5V49EE504NLGI has a built-in Power Management Unit (PMU) that allows you to implement power management features such as clock gating, voltage scaling, and power gating. You can configure the PMU using the Power Management Register (PMR).
  • The latency for the 5V49EE504NLGI depends on the clock frequency and the specific configuration. However, the typical latency is around 10-20 clock cycles.
