6-1337494-0 - TE Connectivity

Description: TE Connectivity Right Angle 50Ω PCB Mount Bulkhead Fitting BNC Connector, jack, Nickel, Through Hole Termination

Download 6-1337494-0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
6-1337494-0 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

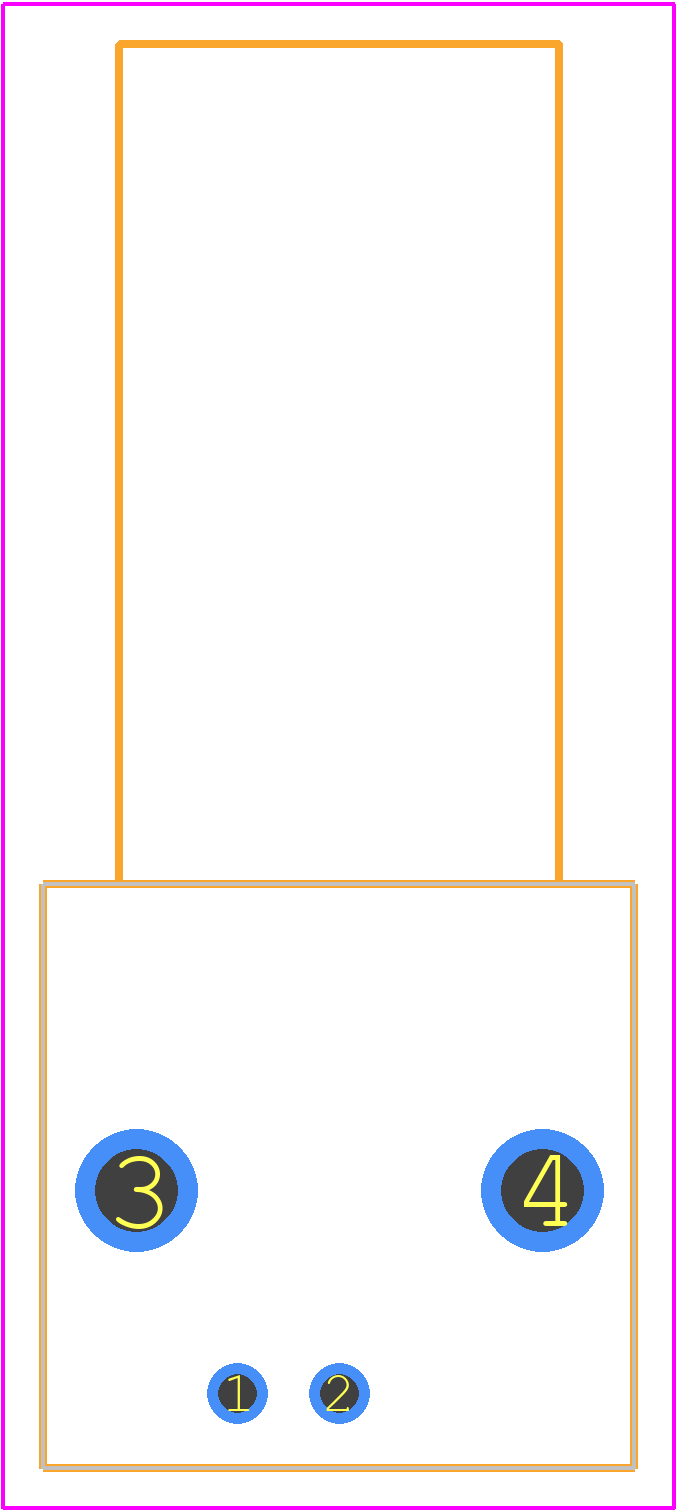

6-1337494-0 - TE Connectivity PCB footprint - Other - Other - 6-1337494-0-2
click to zoom
3D Models
6-1337494-0 - TE Connectivity - 3D model - Other - 6-1337494-0-2
click to zoom

6-1337494-0 Details

  • Manufacturer Part Number:

    6-1337494-0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Additional Feature:

    SHIELDED

  • Body Breadth:

    0.622 inch

  • Body Depth:

    1.402 inch

  • Body Length:

    0.581 inch

  • Body/Shell Style:

    JACK

  • Characteristic Impedance:

    50 Ω

  • Connector Type:

    RF BNC CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    COAX

  • Coupling Type:

    BAYONET

  • DIN Conformance:

    NO

  • Durability:

    50 Cycles

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    5000000000 Ω

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    PANEL

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Frequency-Max:

    4 GHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Shell Finish:

    NICKEL

  • Shell Material:

    ZINC ALLOY

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    1
