The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
Yes, the 6-5174217-4 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 standard for vibration resistance, making it suitable for use in applications such as transportation, industrial, and aerospace.
The 6-5174217-4 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand humid environments. However, it's essential to follow the recommended storage and operating conditions to ensure optimal performance and longevity.
The 6-5174217-4 connector has a mating cycle life of at least 500 cycles, making it suitable for applications where frequent connections and disconnections are required.
Yes, the 6-5174217-4 connector is part of the TE Connectivity AMPSEAL 16 connector family and is compatible with other products in this family. It's essential to verify compatibility with specific products and applications to ensure proper mating and performance.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
6-5174217-4 Overview

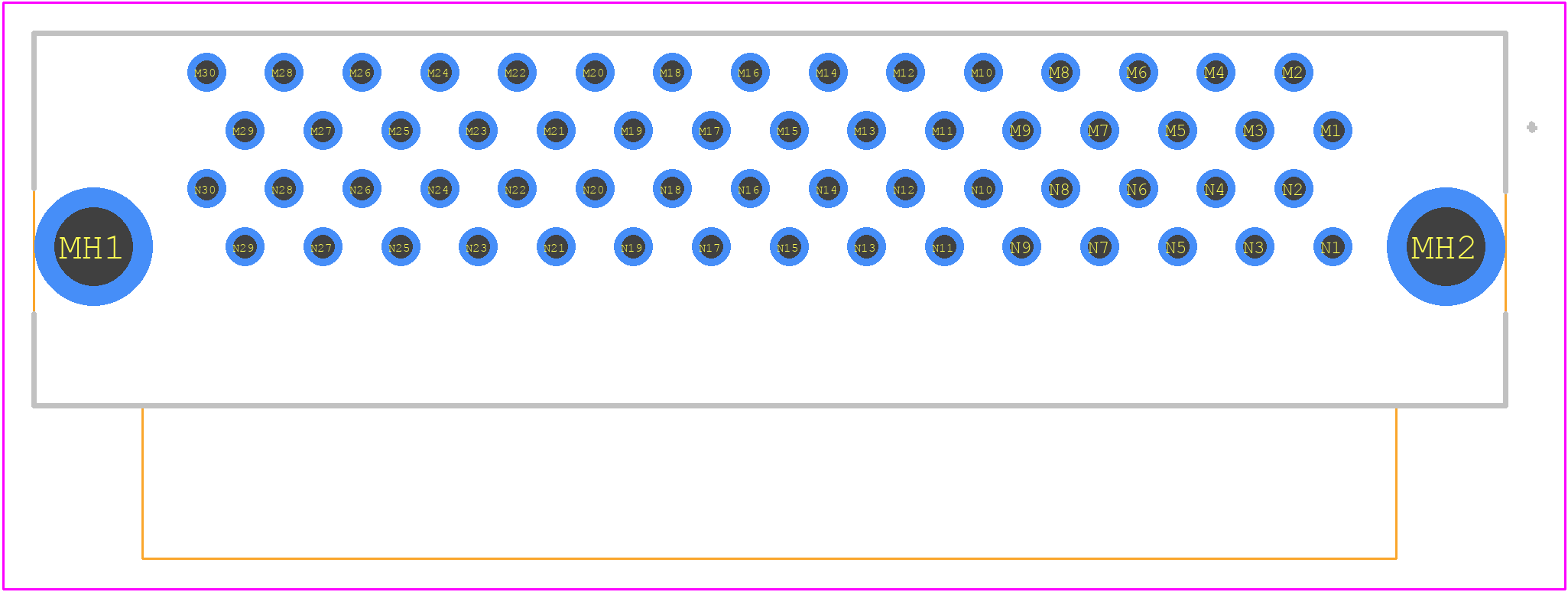

Use the download button to access the 6-5174217-4 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 6-517,
or try a keyword search, such as D Type Connectors
About TE Connectivity
TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
