6-520315-1 - TE Connectivity

Description: FFC & FPC Connectors TRIOMATE ASSY V 11PL= 3.556LDFR

Download 6-520315-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
6-520315-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

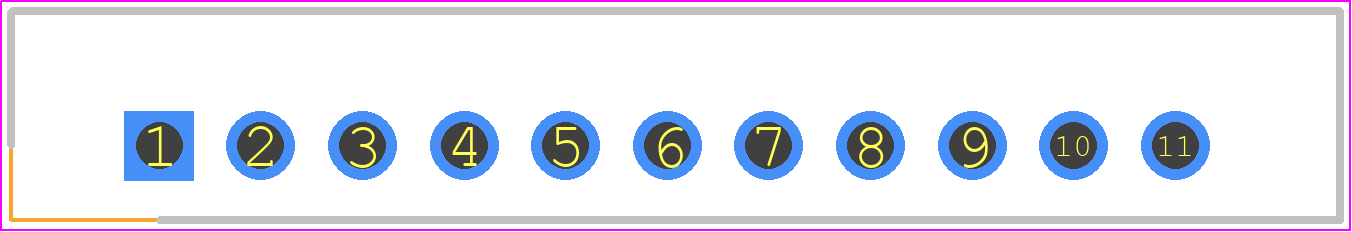

6-520315-1 - TE Connectivity PCB footprint - Header, Receptacle - Straight PTH Box - Header, Receptacle - Straight PTH Box - 6-520315-1
click to zoom
3D Models
6-520315-1 - TE Connectivity - 3D model - Header, Receptacle - Straight PTH Box - 6-520315-1
click to zoom

6-520315-1 Details

  • Manufacturer Part Number:

    6-520315-1

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    18 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    5.52

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    LIF N

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1A

  • Mating Contact Pitch:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Panel Mount:

    NO

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.14 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    11

  • UL Flammability Code:

    94V-0

6-520315-1 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals of 6-520315-1 is 0.5-0.7 Nm (5-7 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the terminals.
  • Yes, the 6-520315-1 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as transportation, industrial, and aerospace.
  • The 6-520315-1 connector has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's essential to ensure proper sealing and protection when using it in outdoor environments.
  • The 6-520315-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications, including those with extreme temperature requirements.
  • While the 6-520315-1 connector is designed for use with 20 AWG wire, it can accommodate wire sizes ranging from 18 AWG to 22 AWG. However, it's essential to ensure that the wire size and insulation meet the connector's specifications to ensure reliable connections.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

6-520315-1 Overview

Use the download button to access the 6-520315-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 6-520, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
