6-520315-6 - TE Connectivity

Description: TE Connectivity Trio-Mate Series 2.54mm Pitch 16 Way 1 Row Straight Through Hole Female PCB Socket, Tin Plated Contacts

Download ECAD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

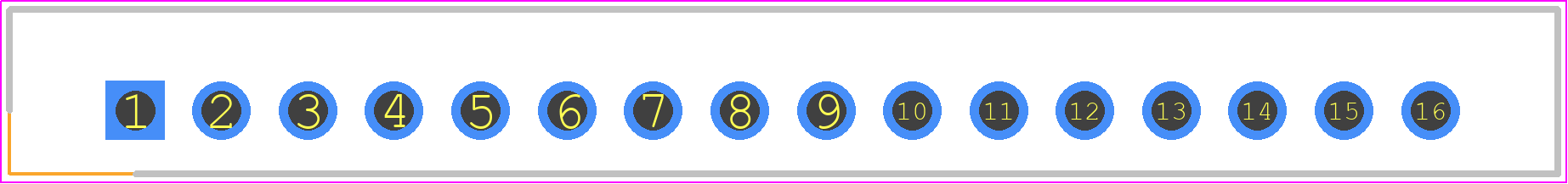

6-520315-6 - TE Connectivity PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - HEADER 1X16
click to zoom

3D Models

6-520315-6 - TE Connectivity  - 3D model - Header, Shrouded - Straight PTH Box - HEADER 1X16
click to zoom

Risk Rank

6-520315-6 — TE Connectivity
2.2 - Low Design Risk
