Part Image

6-6610087-1 - BelFuse

Description: Conn RJ-45 F 48 POS 2.54mm Solder RA Thru-Hole 72 Terminal 6 Port , 0°C ~ 70°C

Download 6-6610087-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
6-6610087-1 - BelFuse - PCB symbol
click to zoom
PCB Footprints

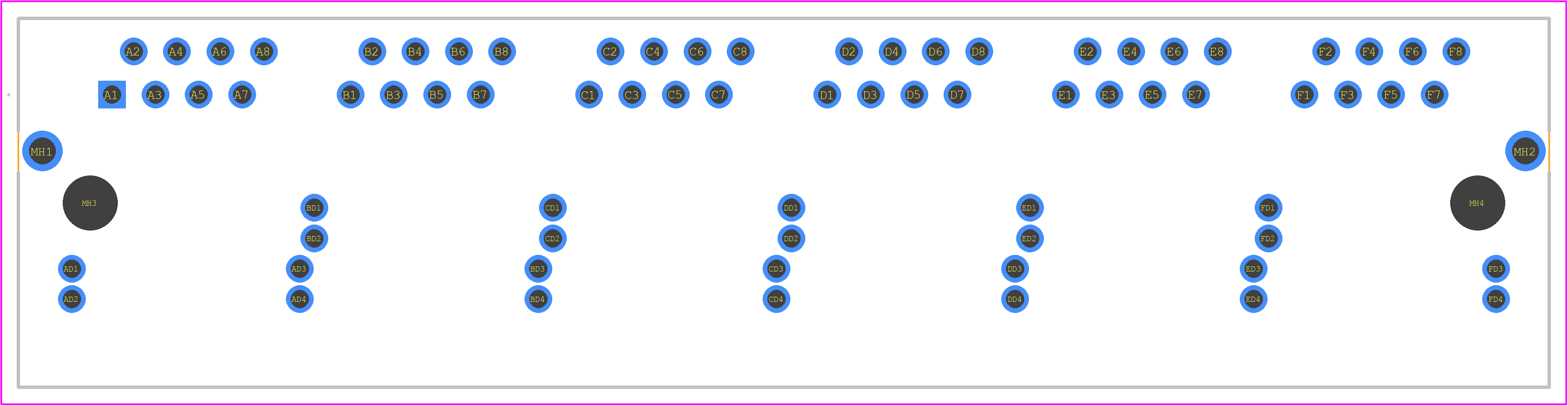

6-6610087-1 - BelFuse PCB footprint - Other - Other - 6-6610087-1-1
click to zoom
3D Models
6-6610087-1 - BelFuse - 3D model - Other - 6-6610087-1-1
click to zoom

6-6610087-1 Details

  • Manufacturer Part Number:

    6-6610087-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Bel Fuse

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

6-6610087-1 Overview

Use the download button to access the 6-6610087-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 6-661, or try a keyword search, such as Pulse/Datacom Transformers
