Description:The ICS601-01 is a low-cost, low phase noise, high-performance clock synthesizer for applications which require low phase noise and low jitter. It is Renesas’ lowest phase noise multiplier, and also the lowest CMOS part in the industry. Using Renesas’ patented analog and digital Phase-Locked Loop (PLL) techniques, the chip accepts a 10 - 27 MHz crystal or clock input, and produces output clocks up to 156 MHz at 3.3 V. This product is intended for clock generation. It has low output jitter (variation in the
Renesas provides a recommended PCB layout guide in their application note (AP61101) for the 601M-01ILFT, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
Renesas recommends using an external overcurrent protection circuit, such as a fuse or a dedicated overcurrent protection IC, to protect the 601M-01ILFT from excessive current. The datasheet provides guidelines for selecting the appropriate overcurrent protection component.
While the datasheet specifies an operating temperature range of -40°C to 125°C, Renesas recommends derating the device's performance at temperatures above 85°C to ensure reliable operation. Consult the datasheet and application notes for more information.
Renesas provides guidelines for EMC design considerations in their application note (AP61102), including recommendations for PCB layout, component selection, and shielding to minimize electromagnetic interference.
Renesas recommends following the JEDEC J-STD-020D.1 standard for soldering the 601M-01ILFT, which includes guidelines for peak temperature, soldering time, and temperature ramp rates to ensure reliable assembly.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
601M-01ILFT Overview

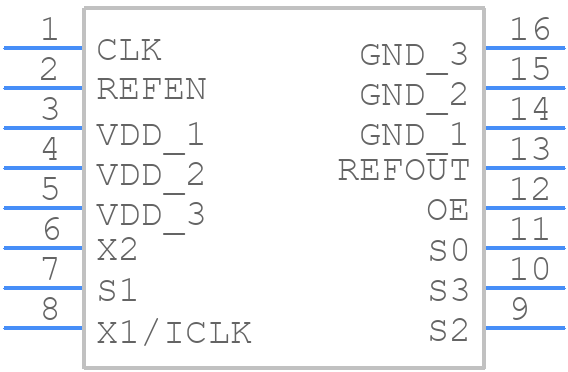

Use the download button to access the 601M-01ILFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 601M-,
or try a keyword search, such as Clock Generators
