Description:The ICS601-01 is a low-cost, low phase noise, high-performance clock synthesizer for applications which require low phase noise and low jitter. It is Renesas’ lowest phase noise multiplier, and also the lowest CMOS part in the industry. Using Renesas’ patented analog and digital Phase-Locked Loop (PLL) techniques, the chip accepts a 10 - 27 MHz crystal or clock input, and produces output clocks up to 156 MHz at 3.3 V. This product is intended for clock generation. It has low output jitter (variation in the
Renesas provides a recommended PCB layout guide in their application note (R01AN3804EJ0100) which includes thermal design considerations, such as thermal vias, copper pours, and component placement, to ensure optimal thermal performance.
The 601M-01LFT does not have built-in overcurrent protection. However, you can implement external overcurrent protection using a dedicated IC or a discrete circuit with a sense resistor and a comparator. Renesas also provides guidelines for overcurrent protection in their application notes.
The maximum allowed voltage drop across the internal resistance of the 601M-01LFT is not explicitly stated in the datasheet. However, as a general guideline, it's recommended to keep the voltage drop below 1V to ensure reliable operation and minimize power loss.
While the 601M-01LFT is rated for operation up to 125°C, it's not recommended to use it in environments above this temperature. Exceeding the maximum operating temperature can lead to reduced reliability, increased power consumption, and potentially cause damage to the device.
To ensure EMC, follow Renesas' guidelines for PCB layout, component selection, and shielding. Additionally, consider using EMI filters, ferrite beads, and shielding components to minimize electromagnetic interference.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
601M-01LFT Overview

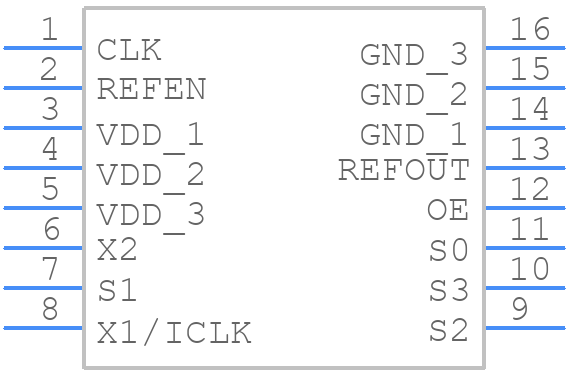

Use the download button to access the 601M-01LFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 601M-,
or try a keyword search, such as Clock Generators
