Description:The 601-02 is a low cost, low phase noise, high performance clock synthesizer for any application that requires low phase noise and low jitter. The 601 is IDT's lowest phase noise multiplier. Using IDT's patented analog and digital Phase Locked Loop (PLL) techniques, the chip accepts a 10–27 MHz crystal or clock input, and produces output clocks up to 170 MHz at 3.3 V. A separate supply pin is provided so that the output can be 2.5 V. This product is intended for clock generation. It has low output jitter (
Renesas provides a recommended PCB layout guide in their application note (AP6111) for the 601M-02ILF, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and implement a robust thermal management system. Additionally, consider using a heat sink or a thermal shield to reduce the junction temperature.
The input capacitor should be a low-ESR, high-frequency capacitor (e.g., ceramic or film capacitor) with a minimum capacitance of 10uF and a voltage rating of at least 25V. The capacitor should be placed as close as possible to the VIN pin to minimize inductance and ensure stable operation.
To troubleshoot output voltage regulation issues, check the input voltage, output load, and feedback resistors. Ensure that the input voltage is within the recommended range, the output load is within the specified current limit, and the feedback resistors are correctly configured. Also, verify that the device is properly soldered and that there are no signs of overheating.
Operating the device beyond the recommended operating conditions can lead to reduced reliability, decreased performance, and potentially even device failure. It's essential to follow the recommended operating conditions to ensure the device operates within its specified parameters and to prevent premature failure.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
601M-02ILF Overview

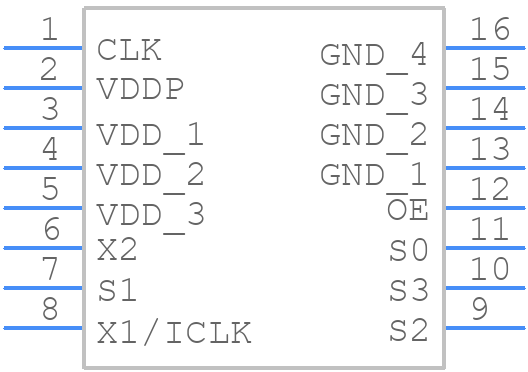

Use the download button to access the 601M-02ILF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 601M-,
or try a keyword search, such as Clock Generators
