60R020XU - LITTELFUSE

Description: LITTELFUSE - 60R020XU - RESETTABLE FUSE, PTC, 40A, 60V, 60R

Download 60R020XU Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 60R020XU model

Email notifications will be applied after download.

Send part feedback

Symbol

60R020XU - LITTELFUSE - PCB symbol

PCB Footprints

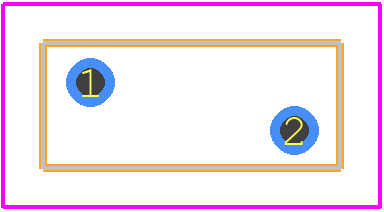

60R020XU - LITTELFUSE PCB footprint - Other - Other - 60R020XU-1

3D Models

60R020XU - LITTELFUSE - 3D model - Other - 60R020XU-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for 60R020XU
Part Number 60R020XU
Manufacturer LITTELFUSE
Pin Count 2
Part Category Resettable Fuse
Package Category Other
Footprint Name Other - 60R020XU-1
Released Date Jun 4, 2019
Last Modified Date Aug 12, 2026 9:13 AM UTC
Pinout / Pin List Click Here (Member Only)

60R020XU Details

Manufacturer Part Number:
60R020XU
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
RADIAL LEADED
Reach Compliance Code:
Compliant
ECCN Code:
EAR99
HTS Code:
8533.40.80.70
Manufacturer:
Littelfuse Inc
YTEOL:
7.4
JESD-609 Code:
e3
Mounting Feature:
THROUGH HOLE MOUNT
Number of Terminals:
2
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Height:
11.7 mm
Package Length:
7.4 mm
Package Shape:
DISK PACKAGE
Package Style:
Radial
Package Width:
3.1 mm
Packing Method:
BULK
Reference Standard:
UL; TUV
Resistance:
1.83 Ω
Resistor Type:
PTC THERMISTOR
Surface Mount:
NO
Terminal Finish:
Matte Tin (Sn)
Terminal Placement:
RADIAL
Terminal Shape:
WIRE
Working Voltage:
60 V

60R020XU Frequently Asked Questions (FAQs)

The recommended soldering temperature for the 60R020XU is between 250°C to 260°C for a maximum of 10 seconds.
Yes, the 60R020XU is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
The maximum surge current rating for the 60R020XU is 100A for a duration of 8.3ms.
Yes, the 60R020XU is designed to operate in high-temperature applications up to 150°C, making it suitable for use in automotive and industrial applications.
Yes, the 60R020XU is available in tape and reel packaging, making it suitable for automated assembly and high-volume production.

Trust Checks

Community Provided

System Verified

Community Approved

60R020XU Overview

Use the download button to access the 60R020XU schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 60R02, or try a keyword search, such as Temperature Dependent Resistors (NTC/PTC)
