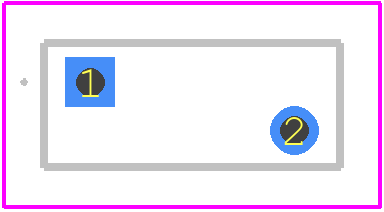

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 60R025XU
- Part Number 60R025XU
- Manufacturer LITTELFUSE
- Pin Count 2
- Part Category Resettable Fuse
- Package Category Other
- Footprint Name Other - 60R025XU-1
- Released Date Feb 24, 2022
- Last Modified Date Aug 12, 2026 9:13 AM UTC
- Pinout / Pin List Click Here (Member Only)
60R025XU Details
-
Manufacturer Part Number:
60R025XU
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
RADIAL LEADED
-
Reach Compliance Code:
Compliant
-
ECCN Code:
EAR99
-
HTS Code:
8533.40.80.70
-
Manufacturer:
Littelfuse Inc
-
YTEOL:
7.4
-
JESD-609 Code:
e3
60R025XU Frequently Asked Questions (FAQs)
-
The recommended soldering temperature for the 60R025XU is between 250°C to 260°C for a maximum of 10 seconds.
-
Yes, the 60R025XU is suitable for high-frequency applications up to 1 MHz, but the user should consider the device's impedance and parasitic inductance.
-
The 60R025XU is designed to withstand high-temperature storage conditions up to 150°C for 1000 hours, but prolonged exposure may affect its electrical characteristics.
-
Yes, the 60R025XU is compatible with lead-free soldering processes, but the user should ensure that the soldering temperature and time are within the recommended specifications.
-
To minimize EMI, it is recommended to use a ground plane under the device, keep the leads as short as possible, and use a shielded enclosure if necessary.
Trust Checks
Community Provided
System Verified
Community Approved
60R025XU Overview
Use the download button to access the 60R025XU schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 60R02,
or try a keyword search, such as Temperature Dependent Resistors (NTC/PTC)
