Wurth Elektronik provides a recommended PCB layout and land pattern in their application notes and whitepapers, which can be found on their website. It's essential to follow these guidelines to ensure proper assembly and reliability.
The datasheet provides thermal resistance values, but it's crucial to consider the component's thermal management in the overall system design. This may involve using thermal pads, heat sinks, or other cooling mechanisms to ensure the component operates within its specified temperature range.
Wurth Elektronik typically provides MSL information in their packaging and handling guidelines. For the 61031021821, it's likely to be MSL 3, which means it can be exposed to a maximum of 168 hours of humidity before assembly. Proper handling and storage procedures should be followed to prevent damage.
While the datasheet may not explicitly mention vibration or shock tolerance, Wurth Elektronik's components are generally designed to meet industry standards for reliability. However, it's essential to consult with Wurth Elektronik's application engineers or perform additional testing to ensure the component's suitability for such environments.
The datasheet may not provide explicit ESD and EMI protection information, but Wurth Elektronik's components are designed to meet industry standards for electromagnetic compatibility (EMC). Additional protection measures, such as TVS diodes or EMI filters, may be necessary depending on the system design and application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
61031021821 Overview

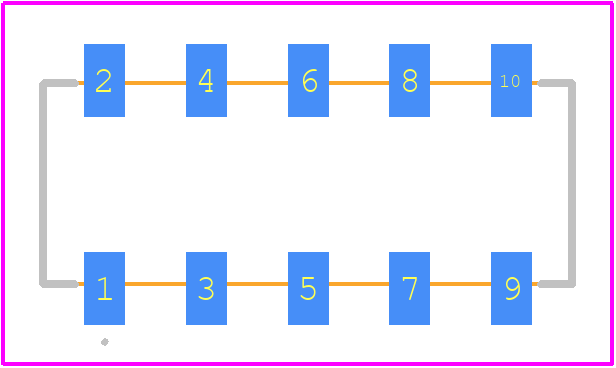

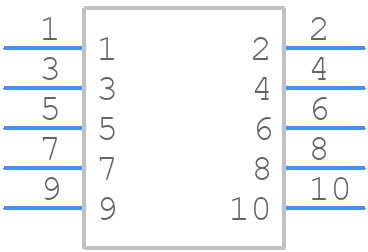

Use the download button to access the 61031021821 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 61031,
or try a keyword search, such as Headers and Edge Type Connectors
