6116151-1 - TE Connectivity

Description: Body Features: Connector Profile Low | Modular Jack Latch Orientation Inverted - Latch Up | Shield Plating Material Tin over Copper | Shield Material Copper Zinc Alloy | Configuration Features: PCB Mount Orientation Right Angle | Port Configuration Single Port | Number of PCB Ground Tabs 4 | Number of Loaded Positions 8 | Connector Contact Density Standard | Status Light Type Not Illuminated | Number of Positions 4 | Port Matrix Configuration 2 x 1 | Multiple Port Configuration Stacked | Number of Positions

Download 6116151-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

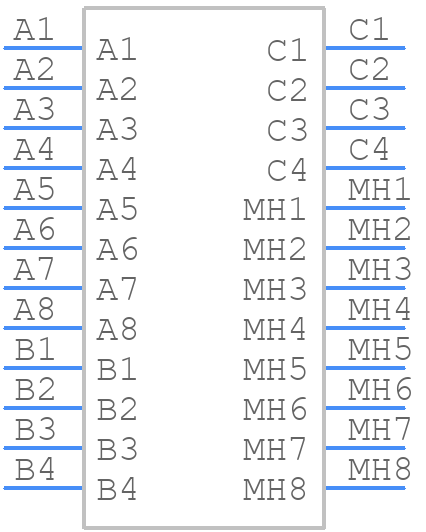

6116151-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

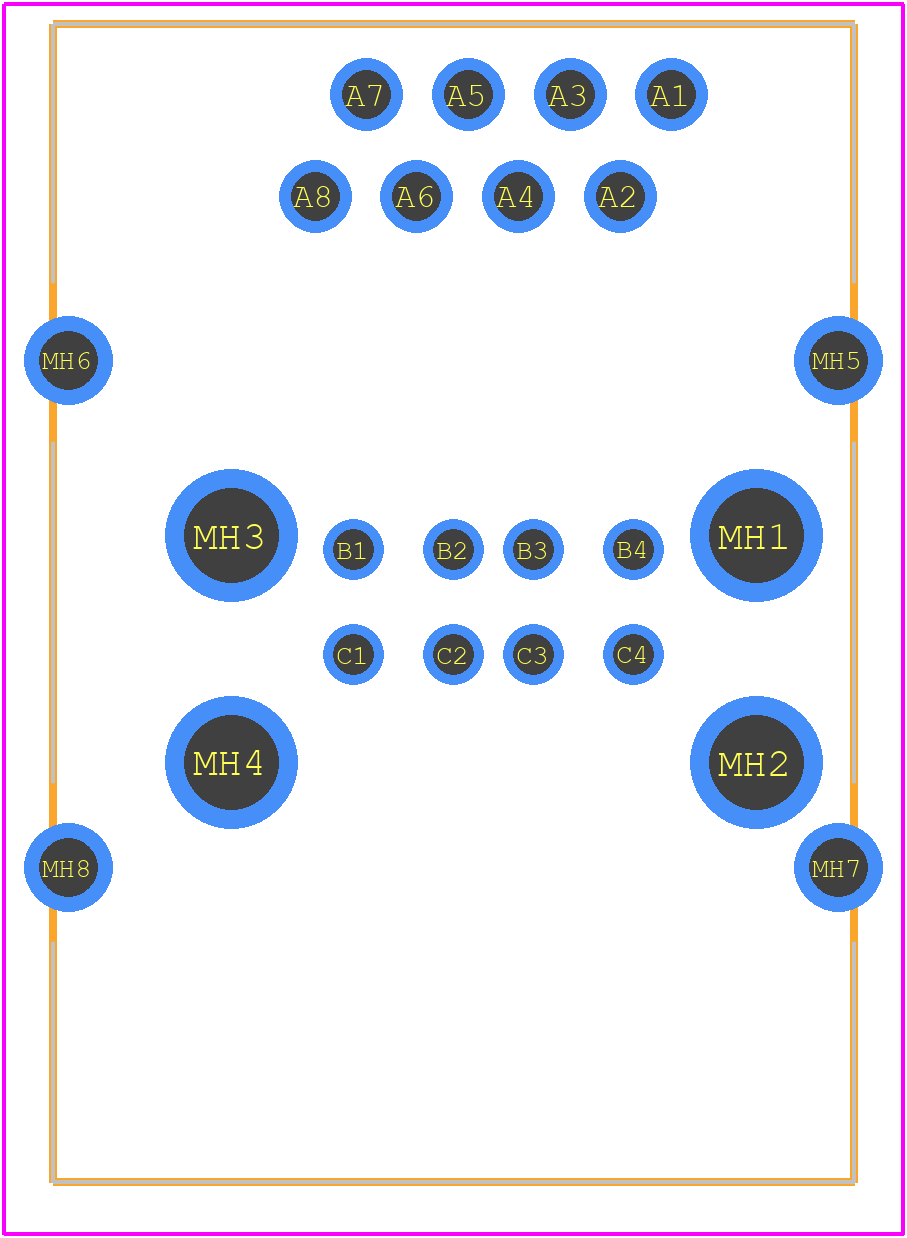

6116151-1 - TE Connectivity PCB footprint - Other - Other - 6116151-1-1
click to zoom
3D Models
6116151-1 - TE Connectivity - 3D model - Other - 6116151-1-1
click to zoom

6116151-1 Details

  • Manufacturer Part Number:

    6116151-1

  • Brand Name:

    TE Connectivity

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    11 Weeks, 1 Day

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.9

  • Additional Feature:

    LOW PROFILE

  • Body Depth:

    1.135 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    TELCOM, MODULAR

  • DIN Conformance:

    NO

  • EMI Shielded:

    YES

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYAMIDE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1.5A

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    TWO

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    1.5 A

  • Reference Standard:

    UL

  • Shell Finish:

    TIN

  • Shell Material:

    COPPER-ZINC ALLOY

  • Terminal Pitch:

    1.02 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    12

  • UL Flammability Code:

    94V-0

6116151-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their support for specific guidance.
  • Yes, the 6116151-1 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 6116151-1 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • The 6116151-1 connector has a IP67 rating, which means it can withstand temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's crucial to ensure proper sealing and follow TE Connectivity's guidelines for use in humid or wet environments.
  • The recommended wire size for the 6116151-1 connector is 24-18 AWG (0.25-1.5 mm²). It's essential to use wires with a temperature rating that matches the connector's operating temperature range. Consult TE Connectivity's application notes for specific guidance on wire selection.
