6116522-3 - TE Connectivity

Description: Body Features: Modular Jack Latch Orientation Inverted - Latch Up | PCB Ground Tab Location -.135 INCH | Shield Plating Material Nickel | Connector Profile Standard | Shield Material Copper Zinc Alloy | PCB Ground Tab Location -3.43 MM | Configuration Features: Port Matrix Configuration 1 x 2 | Number of Panel Ground Tabs 8 | Multiple Port Configuration Ganged | Status Light Type Not Illuminated | Connector Contact Density Standard | Number of Loaded Positions 8 | Number of Positions 8 | Number of PCB Groun

Download 6116522-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

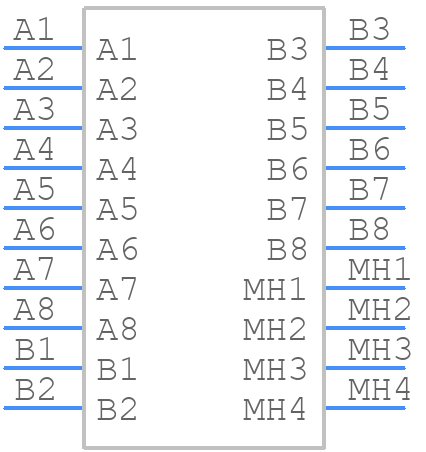

Symbol
6116522-3 - TE Connectivity - PCB symbol
click to zoom

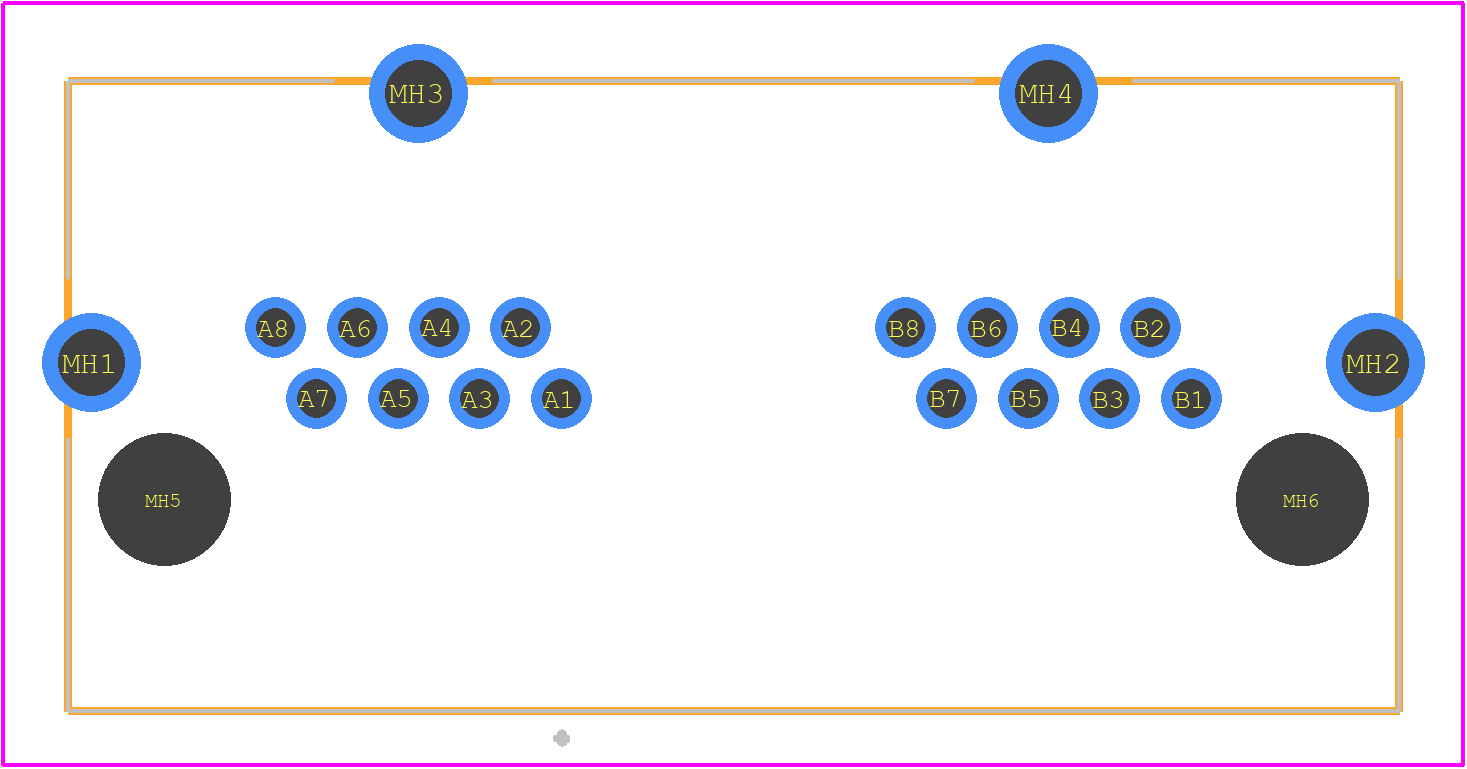

PCB Footprints
6116522-3 - TE Connectivity PCB footprint - Other - Other - 6116522-3-1
click to zoom
3D Models
6116522-3 - TE Connectivity - 3D model - Other - 6116522-3-1
click to zoom

6116522-3 Details

  • Manufacturer Part Number:

    6116522-3

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    12 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • Body Depth:

    0.55 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    YES

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1.5A

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    PANEL

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    50u inch

  • Rated Current (Signal):

    1.5 A

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    COPPER-ZINC ALLOY

  • Terminal Length:

    0.1 inch

  • Terminal Pitch:

    1.02 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

6116522-3 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
  • Yes, the 6116522-3 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as rail, industrial, and automotive.
  • The operating temperature range for the 6116522-3 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector operates within this range to maintain its performance and reliability.
  • Yes, the 6116522-3 connector is suitable for outdoor use. It has a IP67 rating, which means it can withstand exposure to dust and water immersion up to 1 meter for 30 minutes. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating.
  • While the 6116522-3 connector is designed for use with 22 AWG wire, it can accommodate wire sizes between 20 AWG and 24 AWG. However, it's essential to follow the manufacturer's guidelines and ensure that the wire size and insulation meet the connector's specifications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

6116522-3 Overview

Use the download button to access the 6116522-3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 61165, or try a keyword search, such as Telecom and Datacom Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
