61304011021 - Würth Elektronik

Description: WR-PHD 2.54 mm Angled Pin Header 40 pins, 1 row, right angled, gold plating

Download 61304011021 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

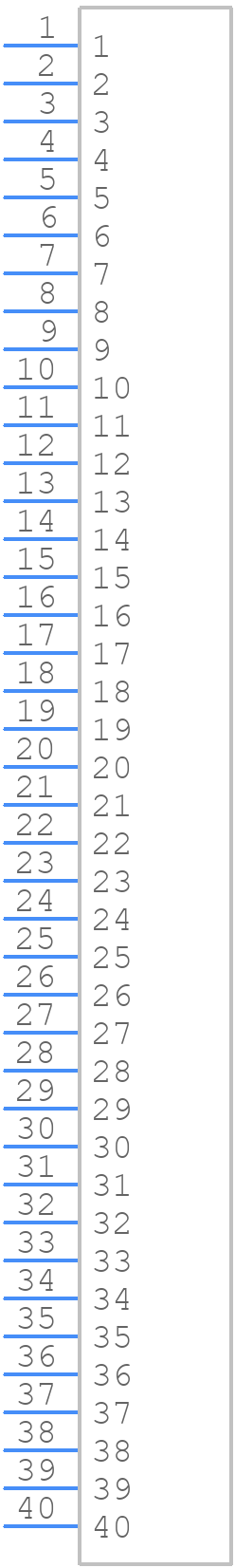

61304011021 - Würth Elektronik - PCB symbol
click to zoom
PCB Footprints

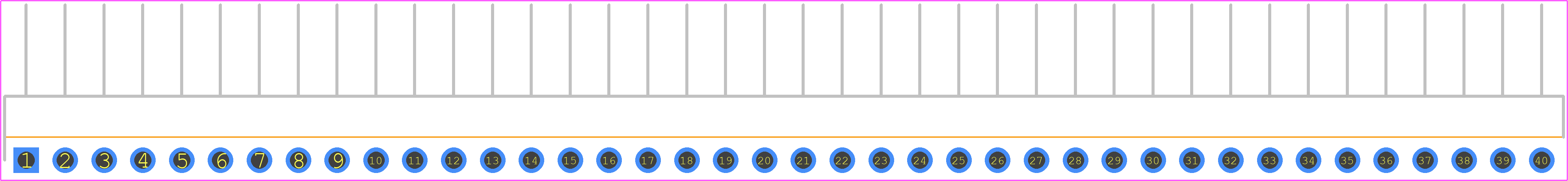

61304011021 - Würth Elektronik PCB footprint - Other - Other - 61304011021
click to zoom
3D Models
61304011021 - Würth Elektronik - 3D model - Other - 61304011021
click to zoom

61304011021 Details

  • Manufacturer Part Number:

    61304011021

  • Brand Name:

    Wurth Electronik

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Wurth Elektronik

  • YTEOL:

    15

  • Body Breadth:

    0.1 inch

  • Body Depth:

    0.159 inch

  • Body Length:

    4 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    500VAC V

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.118 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    40

  • UL Flammability Code:

    94V-0
