61803729321 - Würth Elektronik

Description: WR-DSUB Female PCB Connector Female 37p Straight With board clip & Hex screw UNC 4-40

Download 61803729321 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

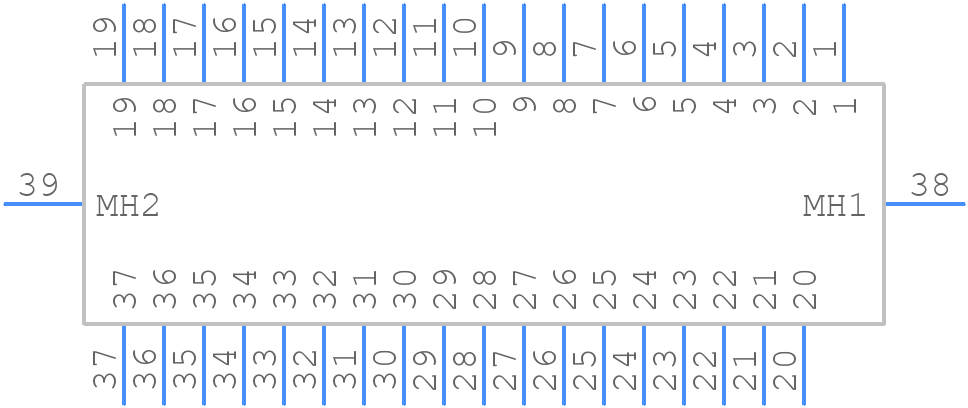

Symbol
61803729321 - Würth Elektronik - PCB symbol
click to zoom

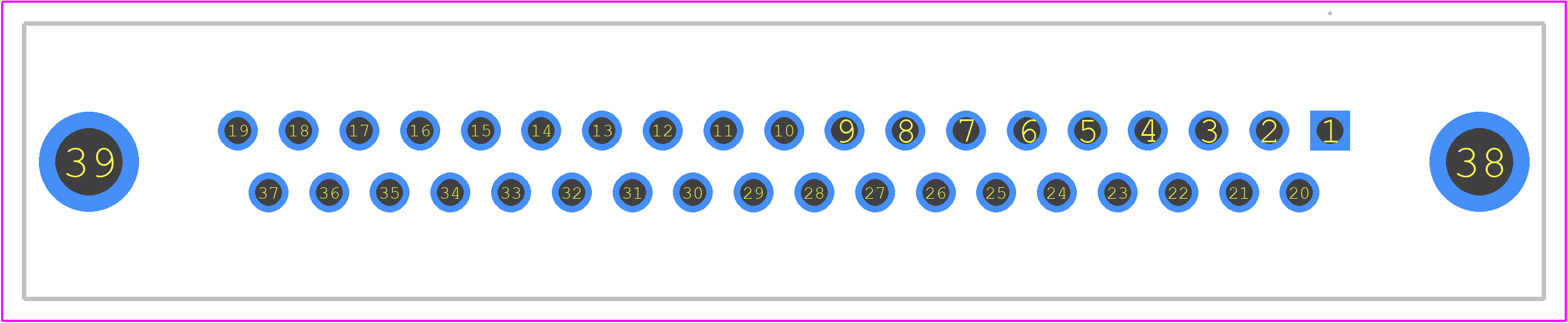

PCB Footprints
61803729321 - Würth Elektronik PCB footprint - Other - Other - 61803729321-1
click to zoom
3D Models
61803729321 - Würth Elektronik - 3D model - Other - 61803729321-1
click to zoom

61803729321 Details

  • Manufacturer Part Number:

    61803729321

  • Brand Name:

    Wurth Electronik

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Wurth Elektronik

  • YTEOL:

    15

  • Additional Feature:

    ROHS COMPLIANT

  • Body Breadth:

    0.492 inch

  • Body Depth:

    0.276 inch

  • Body Length:

    2.729 inch

  • Body/Shell Style:

    PLUG

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    STAGGERED

  • Contact Resistance:

    30 mΩ

  • Contact Style:

    RND PIN-SKT

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Insulation Resistance:

    5000000000 Ω

  • Insulator Color:

    WHITE

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • Mating Contact Pitch:

    0.109 inch

  • Mating Contact Row Spacing:

    0.112 inch

  • Mounting Option 1:

    #4-40

  • Mounting Option 2:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    2.8448 mm

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Shell Finish:

    TIN

  • Shell Material:

    STEEL

  • Terminal Length:

    0.146 inch

  • Terminal Pitch:

    2.7686 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    37

61803729321 Frequently Asked Questions (FAQs)

  • Wurth Elektronik provides a recommended PCB layout and land pattern in their application notes and layout recommendations, which can be found on their website or through their customer support.
  • Proper thermal management can be achieved by following Wurth Elektronik's recommended thermal design guidelines, which include providing adequate heat dissipation paths, using thermal vias, and ensuring good airflow around the component.
  • The maximum operating temperature range for the 61803729321 component is typically specified as -40°C to +125°C, but it's essential to check the specific datasheet or consult with Wurth Elektronik's customer support for the exact temperature range.
  • Wurth Elektronik's components are designed to meet specific vibration and shock requirements, but it's crucial to consult their application notes and environmental testing data to ensure the component can withstand the specific environmental conditions of your application.
  • Wurth Elektronik provides recommended soldering profiles and guidelines in their application notes, which include specific temperature and time requirements to ensure reliable solder joints.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

61803729321 Overview

Use the download button to access the 61803729321 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 61803, or try a keyword search, such as D Type Connectors
