621NILFT - Renesas Electronics

Description: The 621 is a low skew, single input to four output, clock buffer. The device operates from a single 1.2 to 1.8 volt supply and has a 3.3 volt tolerant input, making it ideal for level translation. IDT makes many non-PLL and PLL based low skew output devices as well as Zero Delay Buffers to synchronize clocks. Contact us for all of your clocking needs.

Download 621NILFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

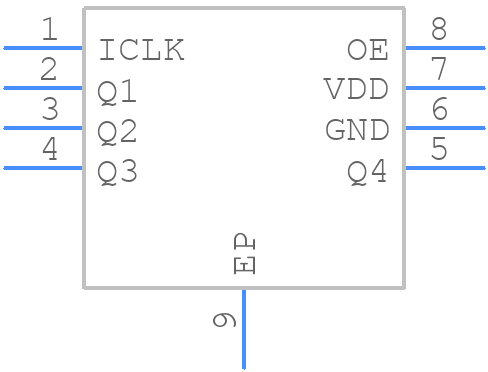

621NILFT - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
621NILFT - Renesas Electronics PCB footprint - Small Outline No-lead - Small Outline No-lead - (8-pin DFN 2x2mm, 0.5mm pitch)
click to zoom
3D Models
621NILFT - Renesas Electronics - 3D model - Small Outline No-lead - (8-pin DFN 2x2mm, 0.5mm pitch)
click to zoom

621NILFT Details

  • Manufacturer Part Number:

    621NILFT

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    VFQFPN

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    NBG8P1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Family:

    621

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    S-XDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Max I(ol):

    0.008 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of True Outputs:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    5 ns

  • Propagation Delay (tpd):

    5 ns

  • Same Edge Skew-Max (tskwd):

    0.15 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    1.89 V

  • Supply Voltage-Min (Vsup):

    1.14 V

  • Supply Voltage-Nom (Vsup):

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

621NILFT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a dedicated thermal layer and a thermal via array under the package is recommended for optimal thermal performance. Ensure a solid ground plane on the bottom layer and a thermal relief pattern on the top layer.
  • Implement a robust thermal management system, including a heat sink, thermal interface material, and a cooling fan. Ensure the device is operated within the recommended temperature range (TJ = -40°C to 150°C) and consider using a thermal protection circuit.
  • Use a multi-layer PCB with a solid ground plane, and ensure proper decoupling and filtering of power supply lines. Implement a shielded enclosure and consider using EMI-absorbing materials. Follow good PCB layout practices, such as separating analog and digital circuits.
  • Implement power-saving modes, such as dynamic voltage and frequency scaling, and use the device's built-in power management features. Optimize the system's clock frequency and voltage settings, and consider using a low-power oscillator.
  • The internal oscillator can be configured for a frequency range of 4 MHz to 32 MHz. For optimal performance, set the oscillator to 16 MHz or 24 MHz, and ensure the clock signal is properly decoupled and filtered.
