621NLFT - Renesas Electronics

Description: The 621 is a low skew, single input to four output, clock buffer. The device operates from a single 1.2 to 1.8 volt supply and has a 3.3 volt tolerant input, making it ideal for level translation. IDT makes many non-PLL and PLL based low skew output devices as well as Zero Delay Buffers to synchronize clocks. Contact us for all of your clocking needs.

Download 621NLFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

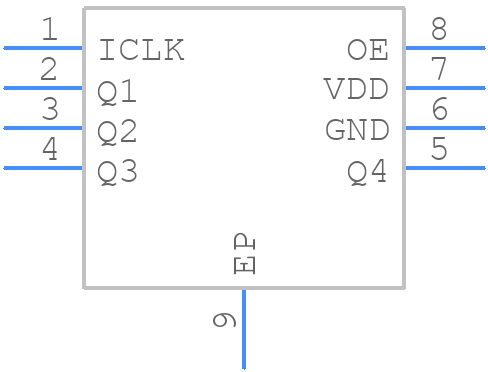

621NLFT - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
621NLFT - Renesas Electronics PCB footprint - Small Outline No-lead - Small Outline No-lead - (8-pin DFN 2x2mm, 0.5mm pitch)
click to zoom
3D Models
621NLFT - Renesas Electronics - 3D model - Small Outline No-lead - (8-pin DFN 2x2mm, 0.5mm pitch)
click to zoom

621NLFT Details

  • Manufacturer Part Number:

    621NLFT

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    VFQFPN

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    NBG8P1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Family:

    621

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    S-XDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Max I(ol):

    0.008 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of True Outputs:

    4

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    5 ns

  • Propagation Delay (tpd):

    5 ns

  • Same Edge Skew-Max (tskwd):

    0.15 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    1.89 V

  • Supply Voltage-Min (Vsup):

    1.14 V

  • Supply Voltage-Nom (Vsup):

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

621NLFT Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (R01AN2732EU0100) which includes thermal vias, thermal pads, and heat sink recommendations to ensure optimal thermal performance.
  • Renesas recommends using an external overcurrent protection circuit, such as a current sense resistor and a comparator, to detect overcurrent conditions. The 621NLFT also has a built-in overcurrent detection feature, but it's not enabled by default and requires external resistors to set the detection threshold.
  • According to Renesas, the maximum allowed voltage on the VCC pin during power-up and power-down sequences is 7V. Exceeding this voltage may cause damage to the device.
  • Renesas provides EMC design guidelines in their application note (R01AN2732EU0100) which include recommendations for PCB layout, component selection, and shielding to minimize electromagnetic interference.
  • The recommended operating temperature range for the 621NLFT is -40°C to 125°C. However, the device can operate up to 150°C with derating. It's essential to follow the thermal design guidelines to ensure reliable operation within the specified temperature range.
