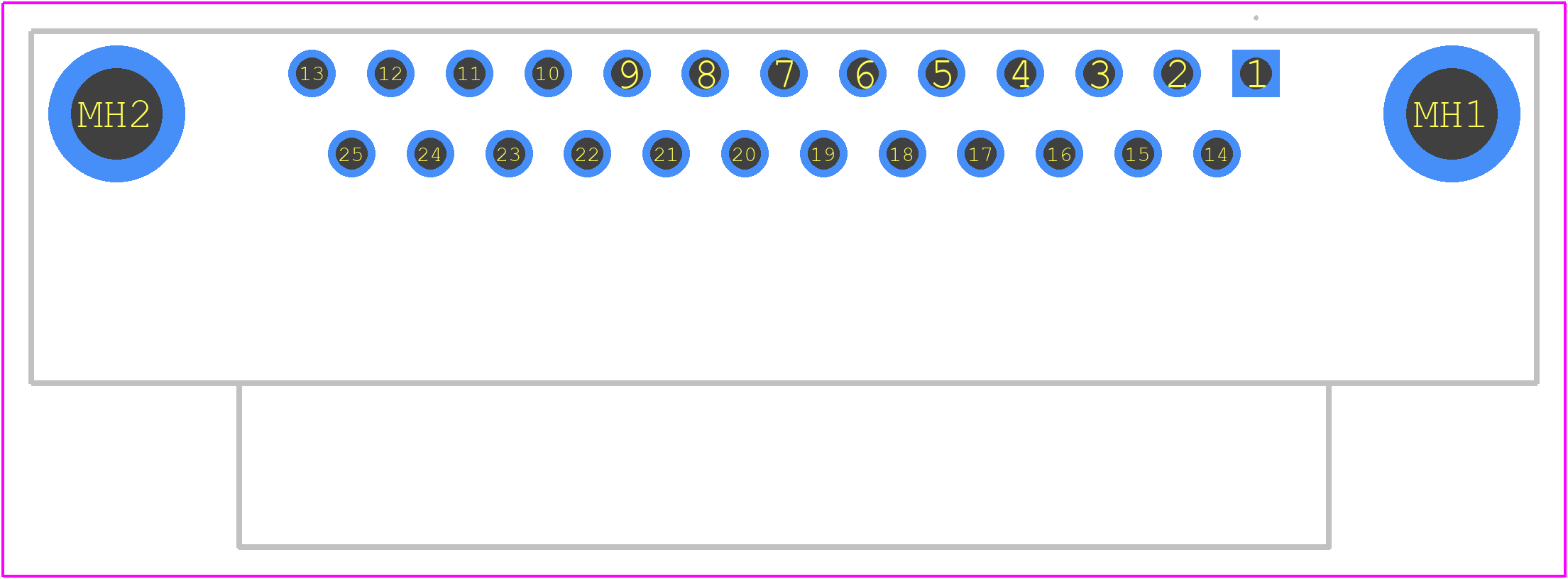

622-025-260-043 - EDAC

622-025-260-043 Details

• Manufacturer Part Number:

  622-025-260-043

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  EDAC Inc

• YTEOL:

  8.5

• Additional Feature:

  POLARIZED

• Board Mounting Option:

  BOARD LOCK

• Body Breadth:

  0.494 inch

• Body Depth:

  0.488 inch

• Body Length:

  2.088 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  D SUBMINIATURE CONNECTOR

• Contact Finish Mating:

  GOLD FLASH OVER NICKEL

• Contact Finish Termination:

  Tin (Sn)

• Contact Gender:

  FEMALE

• Contact Material:

  PHOSPHOR BRONZE

• Contact Pattern:

  STAGGERED

• Contact Resistance:

  25 mΩ

• Contact Style:

  RND PIN-SKT

• Dielectric Withstanding Voltage:

  1000VAC V

• Empty Shell:

  NO

• Filter Feature:

  NO

• Insertion Force-Max:

  4.45 N

• Insulation Resistance:

  5000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  POLYETHYLENE/POLYESTER

• JESD-609 Code:

  e3

• Mating Contact Pitch:

  0.109 inch

• Mating Contact Row Spacing:

  0.112 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  #4-40

• Mounting Option 2:

  THREADED STANDOFF

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD AND PANEL

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.84 mm

• Plating Thickness:

  FLASH inch

• Rated Current (Signal):

  3 A

• Reference Standard:

  UL

• Shell Finish:

  NICKEL

• Shell Material:

  STEEL

• Shell Size:

  3/B

• Terminal Length:

  0.125 inch

• Terminal Pitch:

  2.77 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  25

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  0.28 N
