627-009-220-049 - EDAC

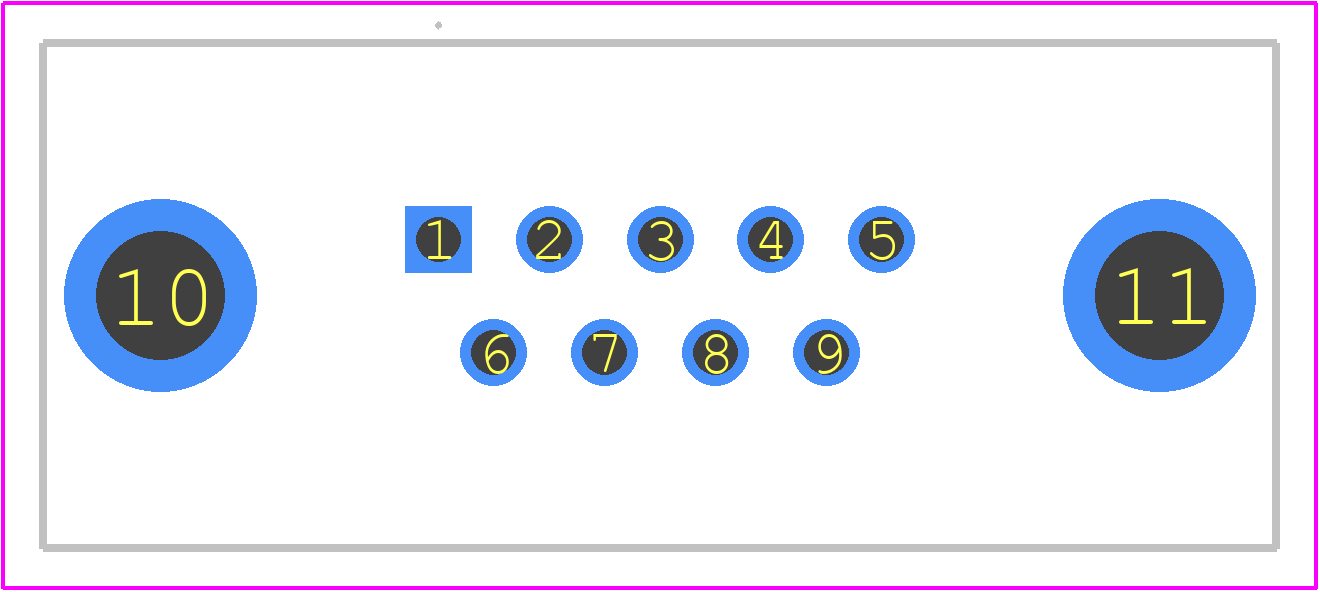

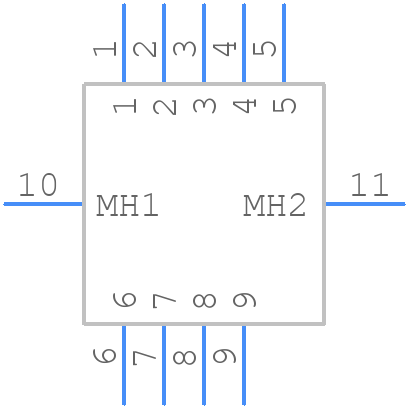

627-009-220-049 Details

• Manufacturer Part Number:

  627-009-220-049

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  EDAC Inc

• YTEOL:

  8.5

• Additional Feature:

  REFERENCE STANDARD: MIL-C-24308; RS-449; UL

• Board Mounting Option:

  HOLE .112-.124

• Body Breadth:

  0.496 inch

• Body Depth:

  0.256 inch

• Body Length:

  1.213 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  D SUBMINIATURE CONNECTOR

• Contact Gender:

  MALE

• Contact Pattern:

  STAGGERED

• Contact Resistance:

  25 mΩ

• Contact Style:

  RND PIN-SKT

• Dielectric Withstanding Voltage:

  1414VAC V

• Empty Shell:

  NO

• Filter Feature:

  NO

• Insertion Force-Max:

  4.45 N

• Insulation Resistance:

  1000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  POLYETHYLENE/POLYESTER

• Mating Contact Pitch:

  0.109 inch

• Mating Contact Row Spacing:

  0.112 inch

• Mating Information:

  MULTILE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  #4-40

• Mounting Option 2:

  CLINCH NUT

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD AND PANEL

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.84 mm

• Plating Thickness:

  FLASH inch

• Rated Current (Signal):

  5 A

• Reference Standard:

  EIA RS-232

• Shell Finish:

  NICKEL

• Shell Material:

  STEEL

• Shell Size:

  1/E

• Terminal Length:

  0.157 inch

• Terminal Pitch:

  2.77 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  9

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  0.28 N
