627-009-621-552 - EDAC

Description: Standard Card Edge Connectors 627 Series vertical D-Sub plug connector with 9 pin type contacts that have 30 " gold plating. The contacts have .125" (3.18mm) to .165" (4.20mm) long P.C.B tails and the insulator is high temp' rated.The body is high profile metal and the flange is

Download 627-009-621-552 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

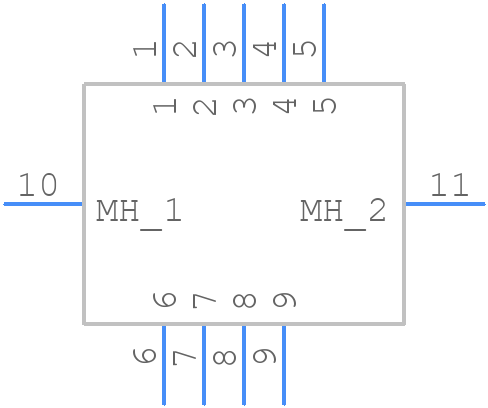

627-009-621-552 - EDAC - PCB symbol
click to zoom
PCB Footprints

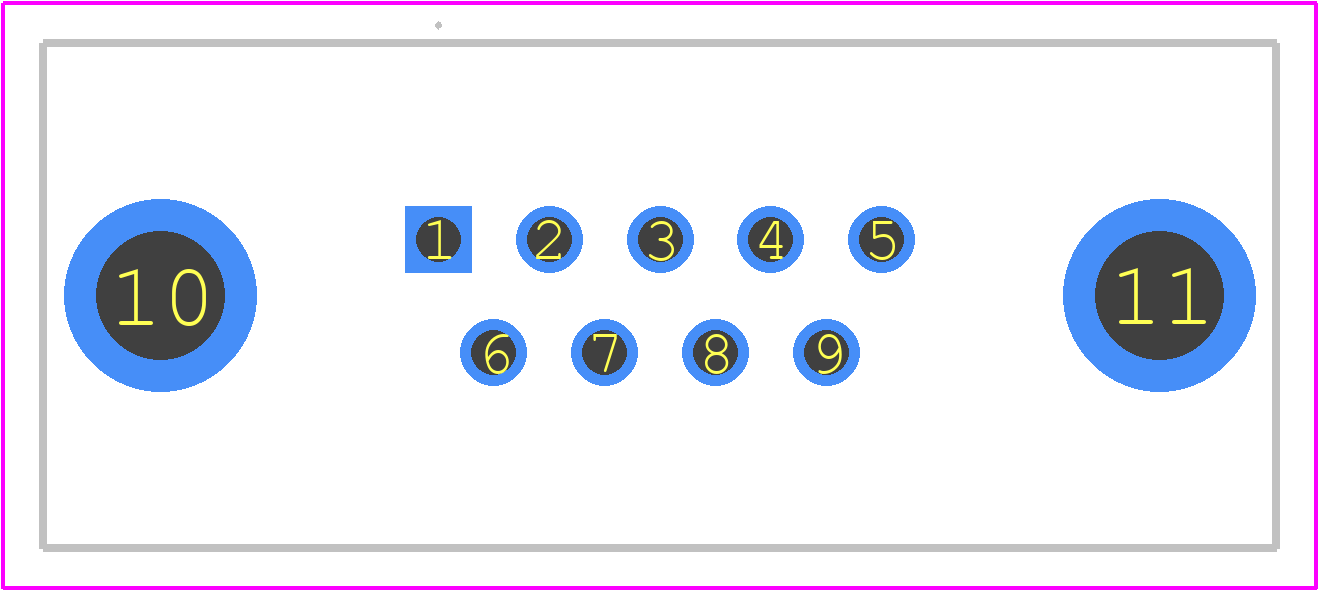

627-009-621-552 - EDAC PCB footprint - Other - Other - 627-009-621-552-3
click to zoom

627-009-621-552 Details

  • Manufacturer Part Number:

    627-009-621-552

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    EDAC Inc

  • YTEOL:

    0

  • Connector Type:

    D SUBMINIATURE CONNECTOR

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

627-009-621-552 Overview

Use the download button to access the 627-009-621-552 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 627-0, or try a keyword search, such as D Type Connectors
