6339167-2 - TE Connectivity

Description: Body Features: Shield Plating Material Tin over Nickel | Modular Jack Latch Orientation Standard - Latch Down | Shield Material Copper Alloy | Connector Profile Standard | PCB Ground Tab Location 4.57 MM | PCB Ground Tab Location .18 INCH | Configuration Features: Connector Contact Density Standard | Number of Panel Ground Tabs 15 | Number of Loaded Positions 8 | Status Light Type Not Illuminated | Multiple Port Configuration Ganged | Number of PCB Ground Tabs 5 | PCB Mount Orientation Right Angle | Number

Download 6339167-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

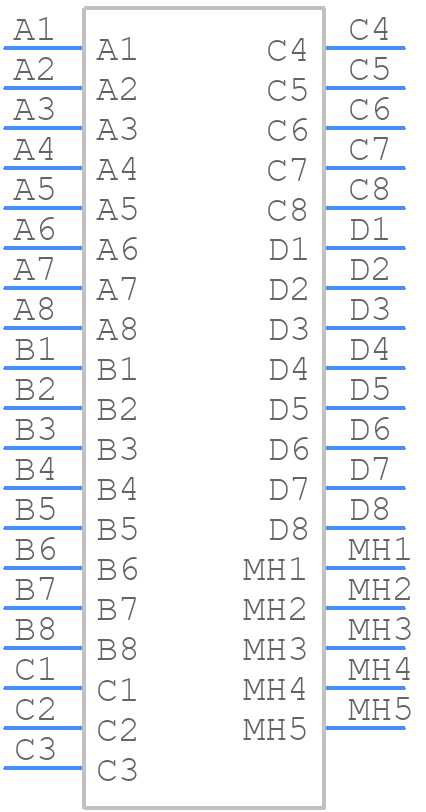

6339167-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

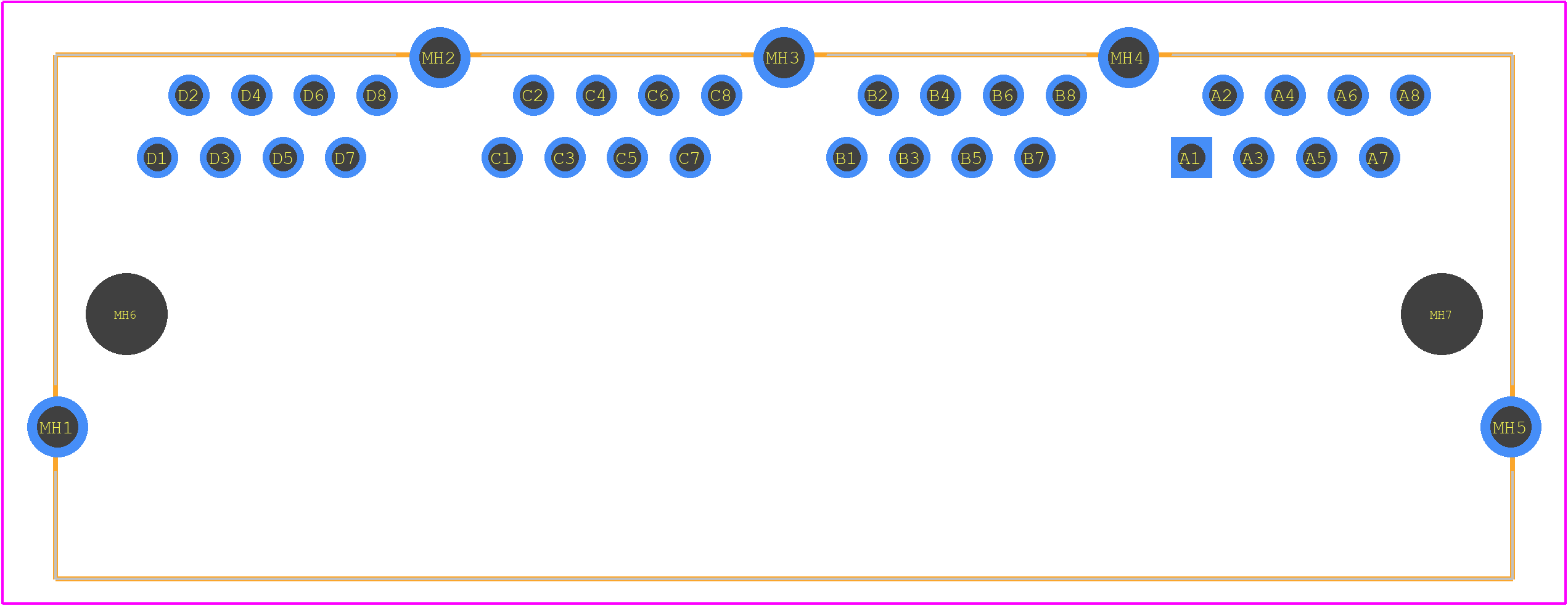

6339167-2 - TE Connectivity PCB footprint - Other - Other - 6339167-2-1
click to zoom
3D Models
6339167-2 - TE Connectivity - 3D model - Other - 6339167-2-1
click to zoom

6339167-2 Details

  • Manufacturer Part Number:

    6339167-2

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    14 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • Additional Feature:

    4 PORTS 8 POSITION EACH

  • Body/Shell Style:

    JACK

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    MATTE TIN

  • Contact Finish Termination:

    MATTE TIN

  • Contact Gender:

    FEMALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE-POLYESTER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    4

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    TIN LEAD

  • Shell Material:

    COPPER ALLOY

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    32

  • UL Flammability Code:

    94V-0

6339167-2 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their support for specific guidance.
  • Yes, the 6339167-2 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 6339167-2 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • Yes, TE Connectivity provides PCB layout guidelines for the 6339167-2 connector. It's essential to follow these recommendations to ensure proper mating and unmating forces, as well as to prevent damage to the connector or PCB.
  • The 6339167-2 connector is designed to operate in various environments, but it's essential to consider the specific application and environmental conditions. TE Connectivity offers additional coatings or plating options for harsh environments. Consult their application notes or contact their support for guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

6339167-2 Overview

Use the download button to access the 6339167-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 63391, or try a keyword search, such as Telecom and Datacom Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
