634-W15-262-012 footprint, schematic symbol and 3D model by EDAC

Symbol

click to zoom

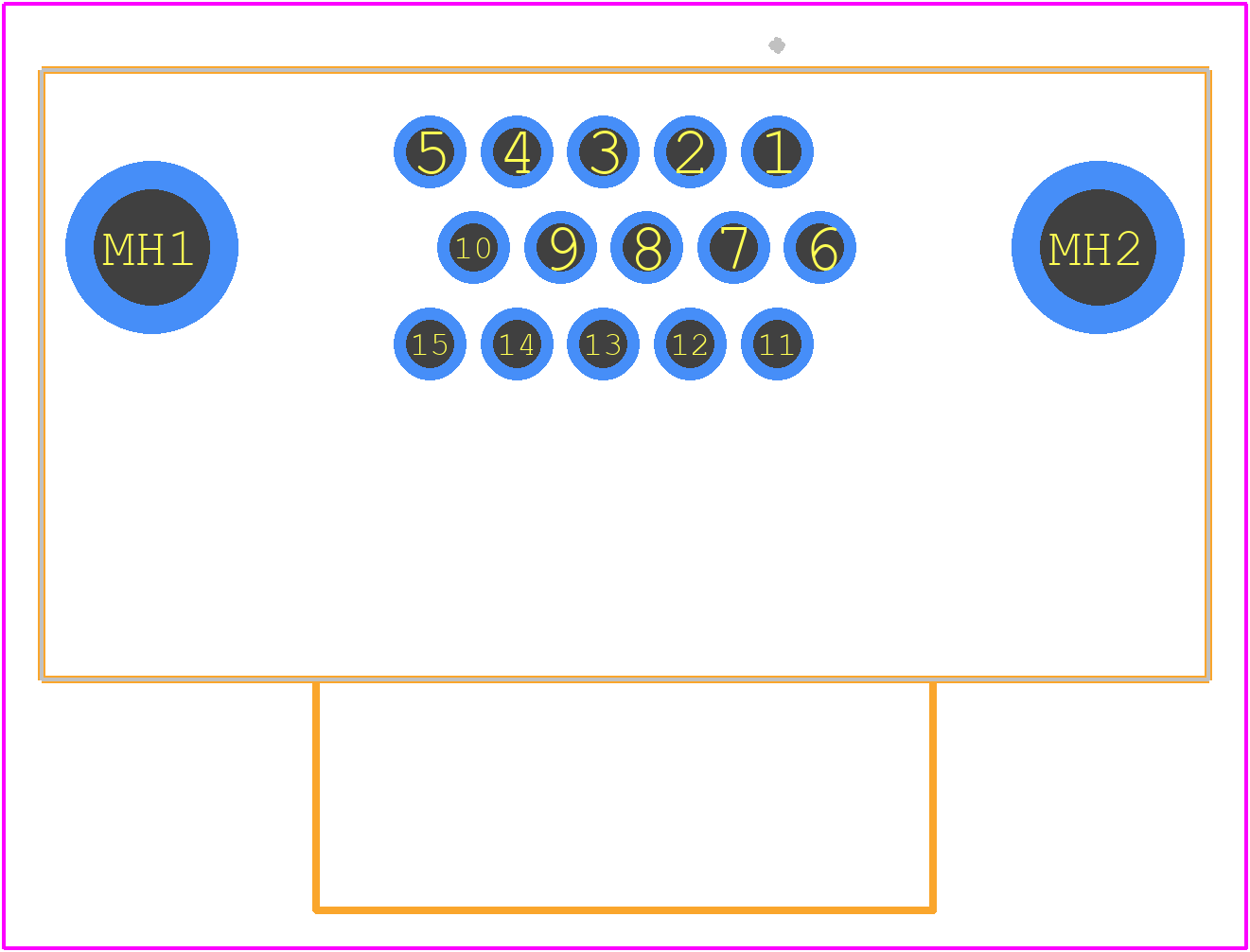

PCB Footprints

634-W15-262-012 - EDAC PCB footprint - Other - Other - 634-W15-262-012-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 634-W15-262-012
Part Number 634-W15-262-012
Manufacturer EDAC
Pin Count 17
Part Category Connector
Package Category Other
Footprint Name Other - 634-W15-262-012-2
Released Date Dec 27, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

634-W15-262-012 Details

Manufacturer Part Number:
634-W15-262-012
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
EDAC Inc
Connector Type:
D SUBMINIATURE CONNECTOR

634-W15-262-012 Frequently Asked Questions (FAQs)

The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
Yes, the 634-W15-262-012 is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
Yes, the connector is rated for outdoor use and can withstand exposure to moisture and humidity, but it's recommended to use a protective coating or sealant to ensure long-term reliability.
The maximum operating temperature for the 634-W15-262-012 is 125°C (257°F).
No, the connector is designed for use with wire gauges 18 AWG to 24 AWG. Using a larger wire gauge may compromise the connector's performance and reliability.

Trust Checks

Expert Contribution

System Verified

Community Approved

634-W15-262-012 Overview

Use the download button to access the 634-W15-262-012 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 634-W, or try a keyword search, such as D Type Connectors
