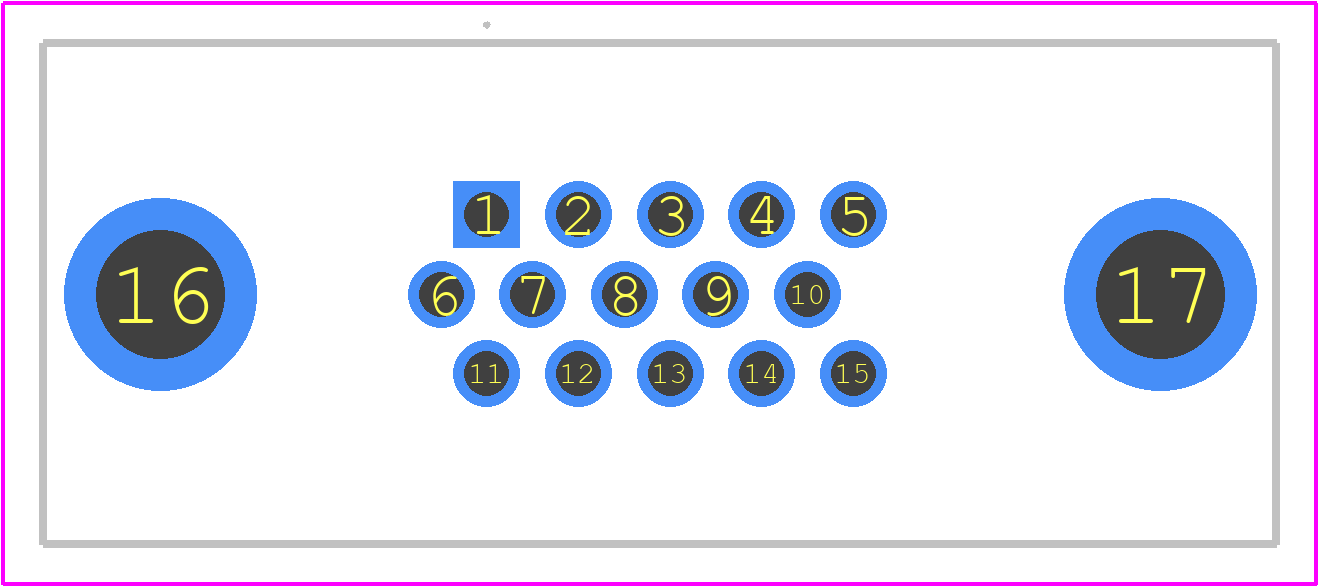

637-M15-230-BN5 - EDAC

637-M15-230-BN5 Details

• Manufacturer Part Number:

  637-M15-230-BN5

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  EDAC Inc

• YTEOL:

  8

• Additional Feature:

  POLARIZED

• Board Mounting Option:

  BOARD LOCK

• Body Breadth:

  0.492 inch

• Body Depth:

  0.248 inch

• Body Length:

  1.213 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  D SUBMINIATURE CONNECTOR

• Contact Design:

  MACHINED

• Contact Gender:

  MALE

• Contact Pattern:

  STAGGERED

• Contact Resistance:

  10 mΩ

• Contact Style:

  RND PIN-SKT

• Dielectric Withstanding Voltage:

  1000VAC V

• Empty Shell:

  NO

• Filter Feature:

  NO

• Insulation Resistance:

  5000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  POLYAMIDE9T

• Mating Contact Pitch:

  0.09 inch

• Mating Contact Row Spacing:

  0.078 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  #4-40 UNC

• Mounting Option 2:

  INSERT

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD AND PANEL

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  3

• Number of Rows Loaded:

  3

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  1.98 mm

• Plating Thickness:

  FLASH inch

• Rated Current (Power):

  5 A

• Reference Standard:

  UL

• Shell Finish:

  NICKEL

• Shell Material:

  STEEL

• Shell Size:

  1/E

• Terminal Length:

  0.216 inch

• Terminal Pitch:

  2.29 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  15

• UL Flammability Code:

  94V-0
