63MXG3900MEFCSN25X30 - Rubycon

Description: Aluminum Electrolytic Capacitors - Snap In GENERAL PURPOSE ELECTROLYTIC CAPACITORS

Download 63MXG3900MEFCSN25X30 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
63MXG3900MEFCSN25X30 - Rubycon - PCB symbol
click to zoom
PCB Footprints

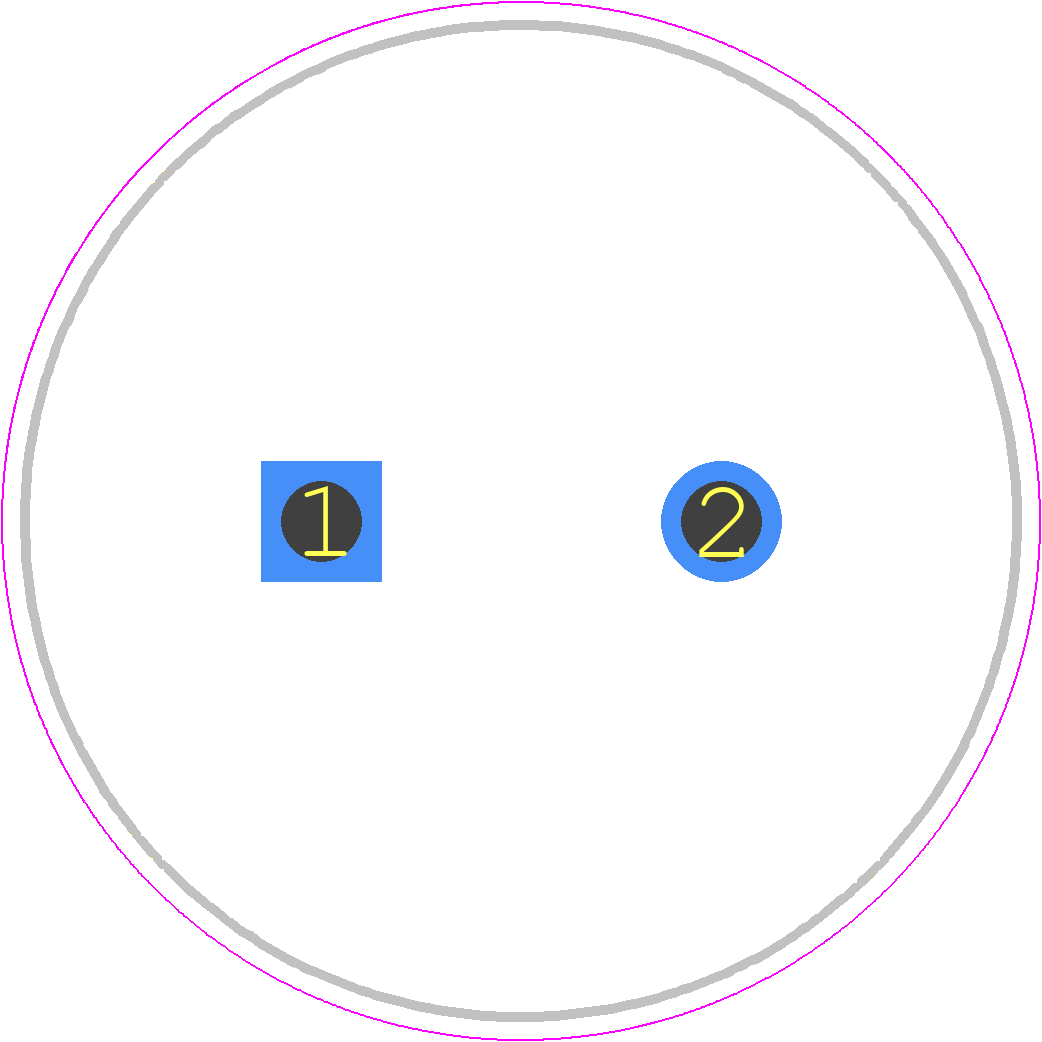

63MXG3900MEFCSN25X30 - Rubycon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 25x30
click to zoom
3D Models
63MXG3900MEFCSN25X30 - Rubycon - 3D model - Capacitor, Polarized Radial Diameter - 25x30
click to zoom

63MXG3900MEFCSN25X30 Details

  • Manufacturer Part Number:

    63MXG3900MEFCSN25X30

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Rubycon Corporation

  • YTEOL:

    6

  • Capacitance:

    3900 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.48704 mA

  • Length:

    30 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    63 V

  • Ripple Current:

    2550 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.3

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    SNAP-IN

63MXG3900MEFCSN25X30 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the 63MXG3900MEFCSN25X30 is between 250°C to 260°C for a maximum of 3 seconds.
  • Yes, the 63MXG3900MEFCSN25X30 is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, or cadmium.
  • The ESR of the 63MXG3900MEFCSN25X30 is typically around 0.02 ohms at 100 kHz, but this value can vary depending on the frequency and operating conditions.
  • The 63MXG3900MEFCSN25X30 is designed to withstand vibrations up to 10 Hz to 2000 Hz, 1.5 mm amplitude, but it's recommended to consult Rubycon's vibration test report for specific details.
  • The MSL of the 63MXG3900MEFCSN25X30 is level 3, which means it can withstand exposure to moisture for up to 168 hours at 30°C and 60% relative humidity.
