63MXG4700MEFCSN25X35 - Rubycon

Description: Cap Aluminum Lytic 4700uF 63V 20% (25 X 35mm) Snap-In 10mm 2970mA 2000h 105°C Bulk

Download 63MXG4700MEFCSN25X35 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
63MXG4700MEFCSN25X35 - Rubycon - PCB symbol
click to zoom
PCB Footprints

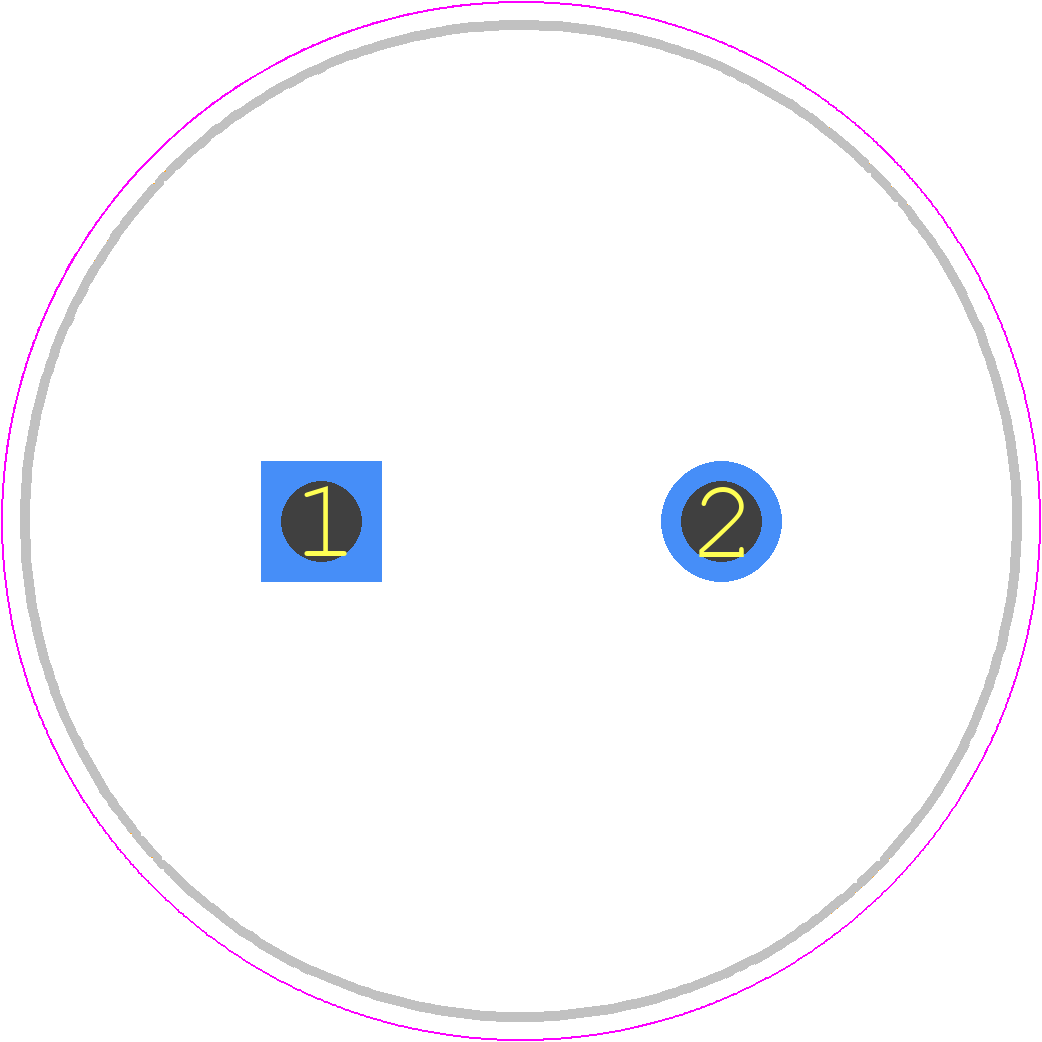

63MXG4700MEFCSN25X35 - Rubycon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 25*35___
click to zoom
3D Models
63MXG4700MEFCSN25X35 - Rubycon - 3D model - Capacitor, Polarized Radial Diameter - 25*35___
click to zoom

63MXG4700MEFCSN25X35 Details

  • Manufacturer Part Number:

    63MXG4700MEFCSN25X35

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Rubycon Corporation

  • YTEOL:

    6

  • Capacitance:

    4700 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.63245 mA

  • Length:

    35 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    63 V

  • Ripple Current:

    2970 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.3

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    SNAP-IN

63MXG4700MEFCSN25X35 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the 63MXG4700MEFCSN25X35 is between 250°C to 260°C, with a maximum soldering time of 3 seconds.
  • Yes, the 63MXG4700MEFCSN25X35 is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's standards for reducing hazardous substances in electronic components.
  • The ESR of the 63MXG4700MEFCSN25X35 is typically around 0.02 ohms at 100 kHz, but this value can vary depending on the frequency and operating conditions.
  • The 63MXG4700MEFCSN25X35 is designed to withstand moderate vibration, but it's essential to consult Rubycon's vibration test standards and ensure the capacitor is properly mounted and secured to prevent damage.
  • The MSL of the 63MXG4700MEFCSN25X35 is level 3, which means it can withstand exposure to moisture for up to 168 hours without requiring special handling or storage.
