6450378-1 - TE Connectivity

Description: Conn Power RCP 7Power/24Signal POS Solder RA Thru-Hole 56 Terminal 1 Port Tray

Download 6450378-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
6450378-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

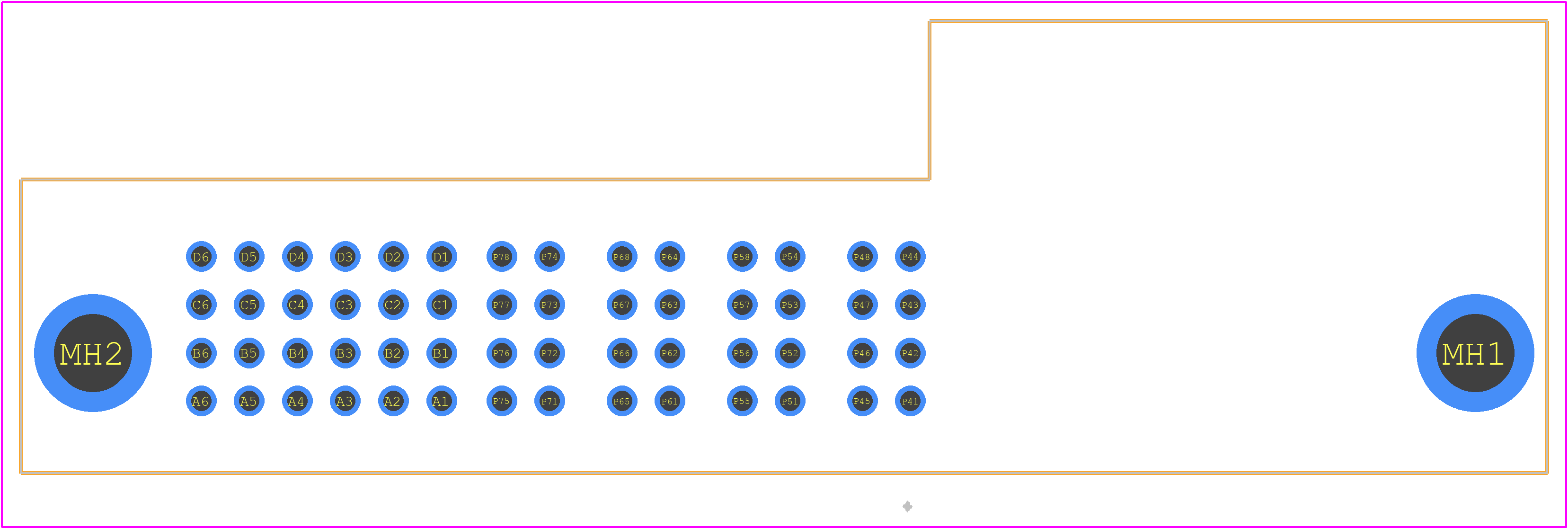

6450378-1 - TE Connectivity PCB footprint - Other - Other - 6450378-1-6
click to zoom
3D Models
6450378-1 - TE Connectivity - 3D model - Other - 6450378-1-6
click to zoom

6450378-1 Details

  • Manufacturer Part Number:

    6450378-1

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9.1

  • Additional Feature:

    TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Arrangement:

    S24P7

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    42A

  • Mixed Contacts:

    YES

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -20 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    3u inch

  • Rated Current (Signal):

    42 A

  • Rated Voltage:

    300 V

  • Reference Standard:

    UL

  • Terminal Length:

    0.135 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    31

  • UL Flammability Code:

    94V-0

6450378-1 Frequently Asked Questions (FAQs)
