647-10ABEP - Wakefield Thermal

Description: Heat Sinks High Efficiency Heat Sink for Vertical Board Mounting for TO-220, Aluminum, Black Anodized, 41.9x25.4mm, 25.4mm Height

Download 647-10ABEP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
647-10ABEP - Wakefield Thermal - PCB symbol
click to zoom
PCB Footprints

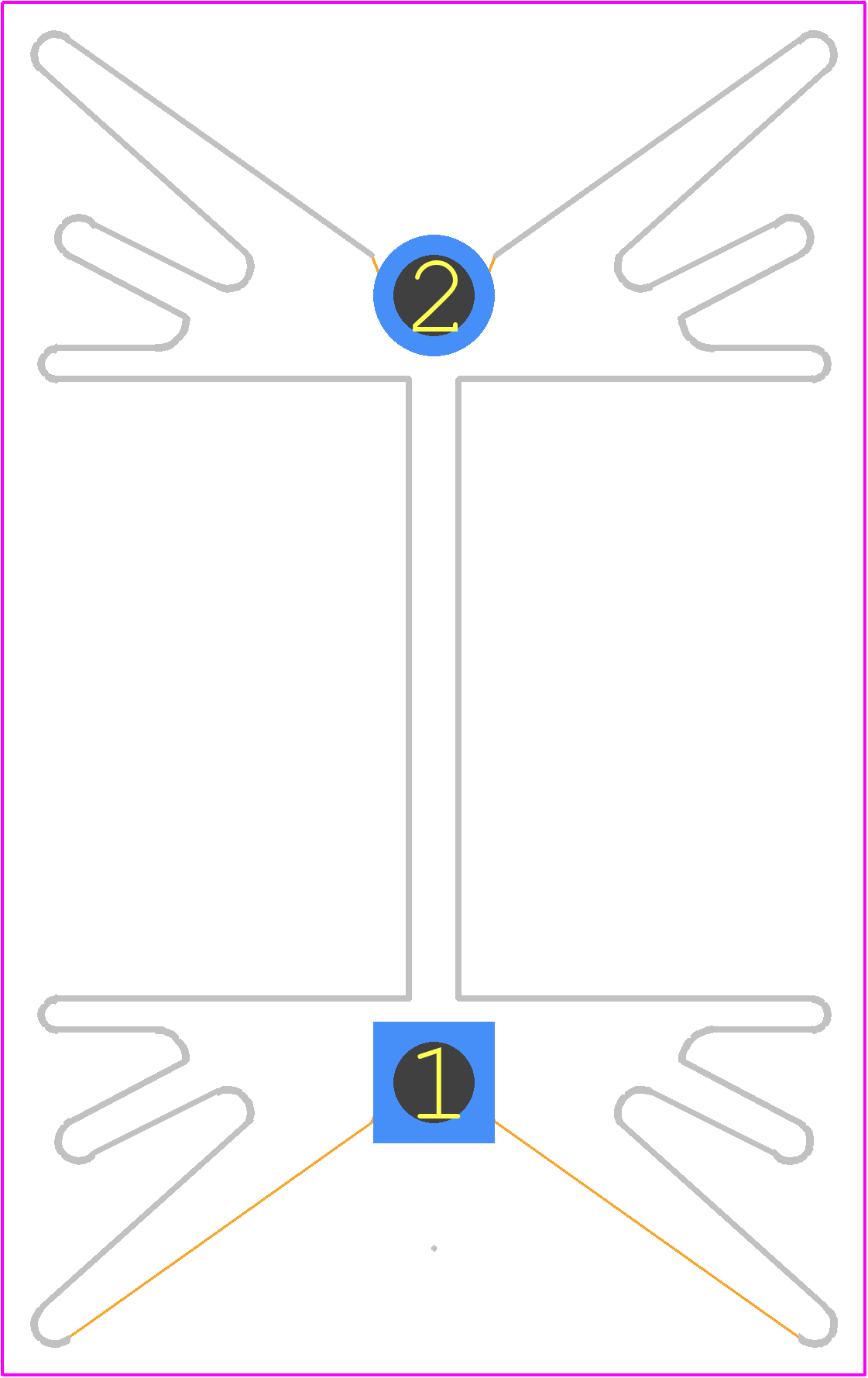

647-10ABEP - Wakefield Thermal PCB footprint - Other - Other - 647-10ABEP-4
click to zoom

647-10ABEP Details

  • Manufacturer Part Number:

    647-10ABEP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.90.00.00

  • Manufacturer:

    Wakefield-Vette

  • Construction:

    EXTRUDED

  • Height:

    25.4 mm

  • Length:

    41.9 mm

  • Thermal Support Device Type:

    HEAT SINK

  • Weight:

    24.95 g

  • Width:

    25.4 mm

647-10ABEP Frequently Asked Questions (FAQs)

  • The recommended mounting orientation is vertical, with the fins facing upwards to ensure optimal airflow and heat dissipation.
  • Yes, the 647-10ABEP is designed to withstand moderate vibration levels. However, it's recommended to consult with Wakefield-Vette's application engineers to determine the suitability of the product for specific vibration profiles.
  • The maximum allowable temperature for the 647-10ABEP is 85°C (185°F). Operating the product above this temperature may affect its performance and lifespan.
  • The 647-10ABEP is designed to operate in environments with relative humidity up to 80%. However, it's recommended to take additional precautions, such as conformal coating or potting, to ensure reliability in high-moisture environments.
  • The typical lead time for the 647-10ABEP is 6-8 weeks. However, this may vary depending on the quantity, configuration, and availability of the product.
