6473418-1 - TE Connectivity

Description: Body Features: Connector & Keying Code 2 | Primary Product Color Black | Configuration Features: Number of Signal Positions 26 | Number of Rows 4 | PCB Mount Orientation Vertical | Number of Positions 26 | Number of Sections 1 | Contact Features: Contact Type Pin | Mating Pin Diameter 1 MM | Contact Mating Area Plating Material Gold | Mating Pin Diameter .039 INCH | Contact Size 1mm | Dimensions: Profile Height from PCB 24.7 MM | Connector Length 1.437 INCH | Connector Width 1.535 INCH | Connector Length 36

Download 6473418-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
6473418-1 - TE Connectivity - PCB symbol
click to zoom

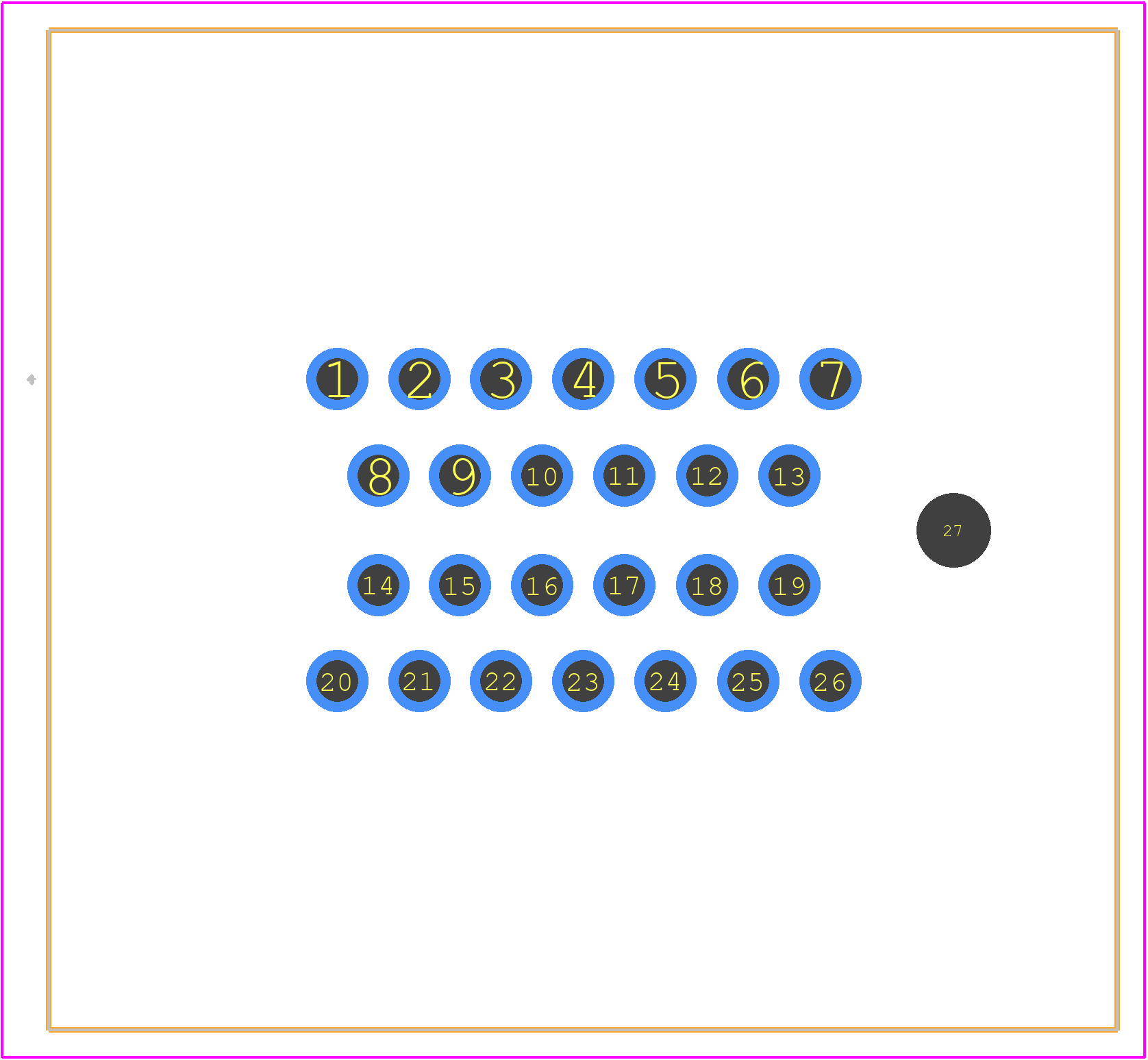

PCB Footprints
6473418-1 - TE Connectivity PCB footprint - Other - Other - 6473418-1-3
click to zoom
3D Models
6473418-1 - TE Connectivity - 3D model - Other - 6473418-1-3
click to zoom

6473418-1 Details

  • Manufacturer Part Number:

    6473418-1

  • Brand Name:

    TE Connectivity

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • Connector Type:

    COMBINATION LINE CONNECTOR

6473418-1 Frequently Asked Questions (FAQs)

  • The recommended torque specification for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow this specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 6473418-1 connector is designed to withstand high-vibration environments. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The operating temperature range for the 6473418-1 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
  • Yes, the 6473418-1 connector is designed to withstand harsh environmental conditions, including moisture, dust, and extreme temperatures. However, it's essential to follow proper sealing and protection guidelines to ensure the connector's reliability in outdoor or harsh environments.
  • The recommended wire size for the 6473418-1 connector is 24-18 AWG (0.25-1.5 mm²). It's essential to use the recommended wire size and type to ensure reliable connections and prevent damage to the connector.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

6473418-1 Overview

Use the download button to access the 6473418-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 64734, or try a keyword search, such as Combination Line Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
