651MLF - Renesas Electronics

Description: The 651 is a low skew, single input to four output, clock buffer. Part of IDT's ClockBlocksTM family, this is a low skew, small clock buffer. IDT makes many non-PLL and PLL based low skew output devices as well as Zero Delay Buffers to synchronize clocks. Contact us for all of your clocking needs.

Download 651MLF Model
Schematic

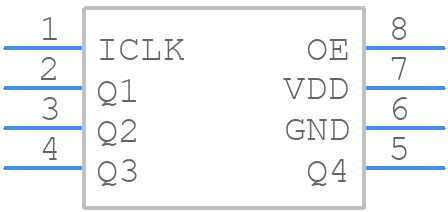

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
651MLF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - (SOIC)
click to zoom
3D Models
651MLF - Renesas Electronics  - 3D model - Small Outline Packages - (SOIC)
click to zoom

651MLF Details

  • Manufacturer Part Number:

    651MLF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    DCG8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Family:

    651

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Max I(ol):

    0.008 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of True Outputs:

    4

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    5 ns

  • Propagation Delay (tpd):

    5 ns

  • Same Edge Skew-Max (tskwd):

    0.25 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    2.625 V

  • Supply Voltage-Min (Vsup):

    1.425 V

  • Supply Voltage-Nom (Vsup):

    1.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

651MLF Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 651MLF is -40°C to 125°C, but it can operate up to 150°C for short periods of time.
  • The 651MLF has an internal POR and BOR circuitry. To handle POR, ensure a stable power supply during startup. For BOR, use an external voltage detector or a supervisor IC to monitor the power supply and reset the device if it falls below a certain threshold.
  • The 651MLF can operate up to 20 MHz with an external clock source, but the internal clock frequency is limited to 10 MHz.
  • To optimize flash memory performance, use the flash accelerator (FA) mode, which reduces the number of wait states and improves read access times. Additionally, use the cache function to reduce the number of flash accesses.
  • The BVR is used to regulate the internal voltage of the device, providing a stable voltage supply to the core and peripherals. It can also be used to power external devices, but ensure the total current consumption does not exceed the BVR's rating.
