651MLFT - Renesas Electronics

Description: The 651 is a low skew, single input to four output, clock buffer. Part of IDT's ClockBlocksTM family, this is a low skew, small clock buffer. IDT makes many non-PLL and PLL based low skew output devices as well as Zero Delay Buffers to synchronize clocks. Contact us for all of your clocking needs.

Download 651MLFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

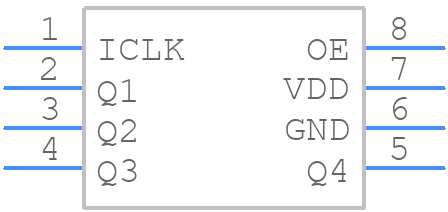

651MLFT - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
651MLFT - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - (SOIC)
click to zoom
3D Models
651MLFT - Renesas Electronics - 3D model - Small Outline Packages - (SOIC)
click to zoom

651MLFT Details

  • Manufacturer Part Number:

    651MLFT

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    DCG8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Family:

    651

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Max I(ol):

    0.008 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of True Outputs:

    4

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    5 ns

  • Propagation Delay (tpd):

    5 ns

  • Same Edge Skew-Max (tskwd):

    0.25 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    2.625 V

  • Supply Voltage-Min (Vsup):

    1.425 V

  • Supply Voltage-Nom (Vsup):

    1.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

651MLFT Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide for the 651MLFT, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance. Contact Renesas support for more information.
  • The 651MLFT has a built-in overcurrent protection feature, but it can be customized using external components. Renesas recommends using a sense resistor and a comparator to detect overcurrent conditions and trigger a shutdown or warning signal.
  • While the datasheet specifies an operating temperature range of -40°C to 125°C, Renesas recommends derating the device's performance at extreme temperatures. Consult the datasheet and application notes for more information on temperature derating.
  • Yes, the 651MLFT is designed to withstand high-vibration environments. However, Renesas recommends following proper PCB design and assembly guidelines to ensure the device's reliability and performance in such environments.
  • Renesas provides a troubleshooting guide for I2C interface issues, which includes steps to check signal integrity, clock frequency, and slave address configuration. Contact Renesas support for more information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

651MLFT Overview

Use the download button to access the 651MLFT schematic symbol, PCB footprint, and 3D model.
