651SCMGI8 - Renesas Electronics

Description: The 651S is a low cost, high-speed single input to four output LVCMOS clock buffer. The 651S has best in class Additive Phase Jitter of sub 50 fsec.

Download 651SCMGI8 Model

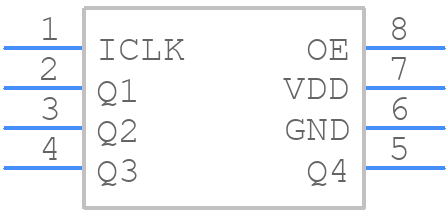

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
651SCMGI8 - Renesas Electronics PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-pin DFN
click to zoom
3D Models
651SCMGI8 - Renesas Electronics  - 3D model - Small Outline No-lead - 8-pin DFN
click to zoom

651SCMGI8 Details

  • Manufacturer Part Number:

    651SCMGI8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    COL

  • Pin Count:

    8

  • Manufacturer Package Code:

    CMG8D1

  • Country Of Origin:

    Malaysia, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Family:

    651

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of True Outputs:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    4.5 ns

  • Same Edge Skew-Max (tskwd):

    0.065 ns

  • Seated Height-Max:

    0.55 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

  • fmax-Min:

    200 MHz

651SCMGI8 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 651SCMGI8 is -40°C to +125°C.
  • The maximum allowed soldering temperature for the 651SCMGI8 is 260°C for 10 seconds.
  • The recommended storage temperature range for the 651SCMGI8 is -40°C to +150°C.
  • The maximum allowed ESD rating for the 651SCMGI8 is 2 kV (Human Body Model) and 150 V (Machine Model).
  • The recommended PCB layout and design considerations for the 651SCMGI8 include using a 4-layer PCB with a solid ground plane, using vias near the device, and following the recommended pinout and signal routing guidelines.
