- Part Number 6651170-3
- Manufacturer TE Connectivity
- Pin Count 20
- Part Category Connector
- Package Category Other
- Footprint Name Other - 6651170-3-3
- Released Date Feb 27, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
6651170-3 Details
-
Manufacturer Part Number:
6651170-3
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Factory Lead Time:
8 Weeks, 5 Days
-
Manufacturer:
TE Connectivity
-
Body Depth:
0.591 inch
-
Body/Shell Style:
RECEPTACLE
-
Connector Type:
CARD EDGE CONNECTOR
-
Contact Finish Mating:
NOT APPLICABLE
6651170-3 Frequently Asked Questions (FAQs)
-
The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
-
Yes, the 6651170-3 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
-
While the datasheet specifies 24 AWG wire, the connector can accommodate wire sizes ranging from 20 AWG to 26 AWG. However, it's crucial to ensure the wire size and insulation meet the connector's specifications to maintain reliable connections.
-
The 6651170-3 connector is designed to operate in a temperature range of -40°C to 125°C and can withstand humidity levels up to 95%. However, it's essential to follow proper sealing and protection procedures to ensure the connector remains reliable in harsh environments.
-
Yes, it's essential to follow proper PCB layout guidelines, such as maintaining a minimum clearance of 1.5 mm between the connector and other components, and ensuring the PCB material can withstand the connector's operating temperatures.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
6651170-3 Overview

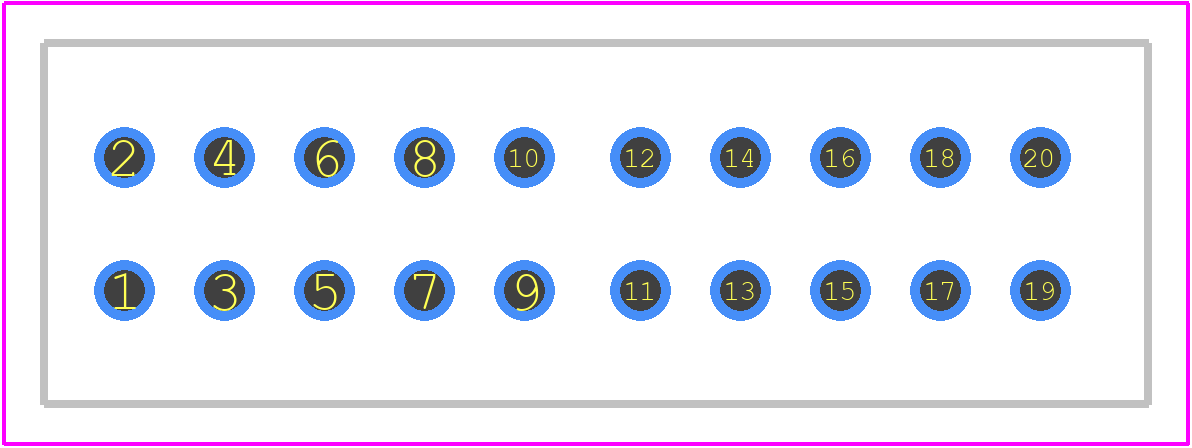

Use the download button to access the 6651170-3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 66511,
or try a keyword search, such as Headers and Edge Type Connectors
