6652208-T0003T-H - Astron

Description: POWER CONNECTOR 4.2mm PITCH, R/A (W/O ASTRON LOGO), 15AMP , 1500VAC , 1000VDC , 1000MΩ , -40°C ~ +105°C

Download 6652208-T0003T-H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
6652208-T0003T-H - Astron - PCB symbol
click to zoom
PCB Footprints

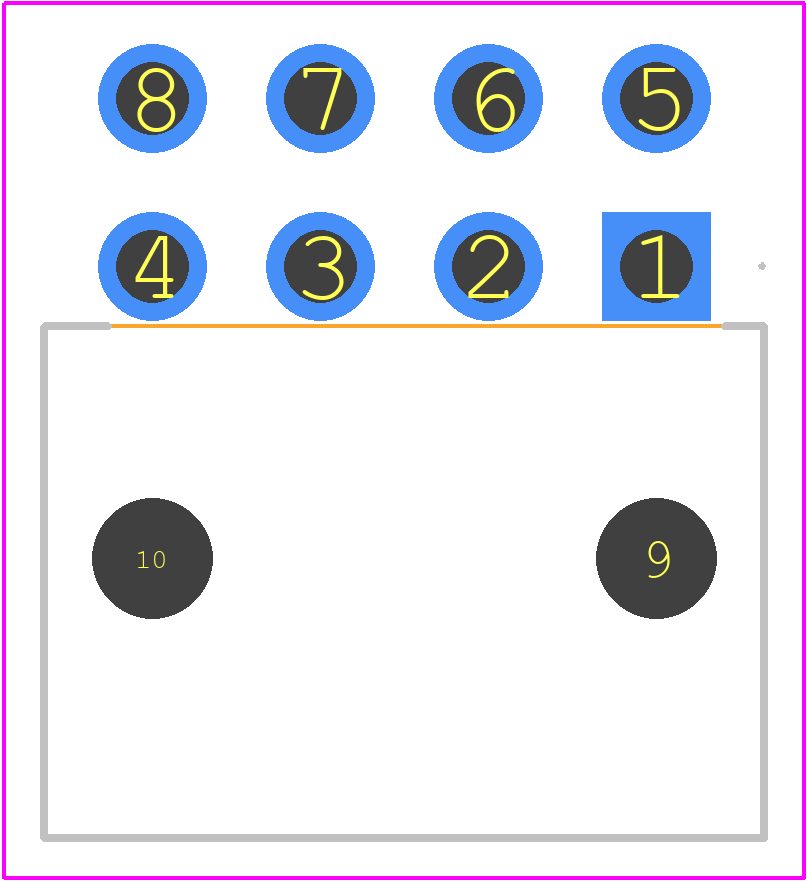

6652208-T0003T-H - Astron PCB footprint - Other - Other - 6652208-T0003T-H-2
click to zoom
3D Models
6652208-T0003T-H - Astron - 3D model - Other - 6652208-T0003T-H-2
click to zoom

6652208-T0003T-H Details

  • Manufacturer Part Number:

    6652208-T0003T-H

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Astron

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

6652208-T0003T-H Frequently Asked Questions (FAQs)

  • The recommended storage temperature range for the 6652208-T0003T-H is -40°C to 125°C, as per the manufacturer's guidelines.
  • Yes, the 6652208-T0003T-H is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the European Union's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
  • The typical lead time for delivery of the 6652208-T0003T-H varies depending on the supplier and the quantity ordered. However, it is usually around 2-4 weeks for standard orders.
  • The 6652208-T0003T-H is designed to withstand moderate vibration levels. However, for high-vibration applications, it's recommended to consult with the manufacturer or a qualified engineer to ensure the component's reliability and performance.
  • Yes, the 6652208-T0003T-H is compatible with lead-free soldering processes, making it suitable for use in modern electronic assemblies.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

6652208-T0003T-H Overview

Use the download button to access the 6652208-T0003T-H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 66522, or try a keyword search, such as Power Connectors
