66AK2H05DAAW2 - Texas Instruments

Description: Digital Signal Processors & Controllers - DSP, DSC HAWKING 1.2GHZ DSP 1.2GHZ ARM 0-85C

Download 66AK2H05DAAW2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
66AK2H05DAAW2 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

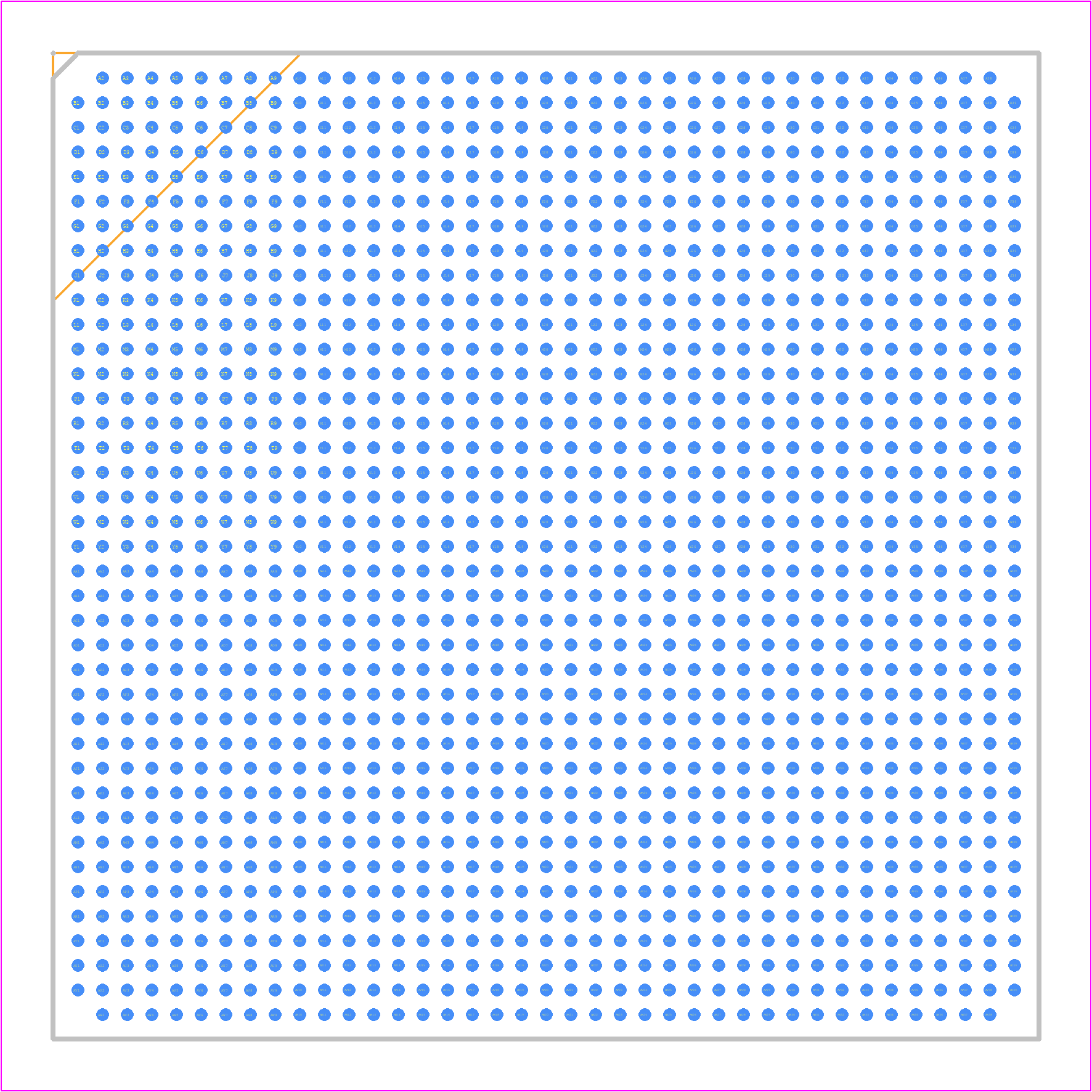

66AK2H05DAAW2 - Texas Instruments PCB footprint - BGA - BGA - AAW1517B
click to zoom
3D Models
66AK2H05DAAW2 - Texas Instruments - 3D model - BGA - AAW1517B
click to zoom

66AK2H05DAAW2 Details

  • Manufacturer Part Number:

    66AK2H05DAAW2

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FCBGA-1517

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.31.00.75

  • Date Of Intro:

    2018-03-10

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-PBGA-B1517

  • JESD-609 Code:

    e1

  • Length:

    40 mm

  • Moisture Sensitivity Level:

    4

  • Number of Terminals:

    1517

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    245

  • Seated Height-Max:

    3.62 mm

  • Supply Voltage-Max:

    1.05 V

  • Supply Voltage-Min:

    0.95 V

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    40 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR, RISC

66AK2H05DAAW2 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout guide in the '66AK2H05DAAW2 PCB Design Guide' document, which includes guidelines for signal routing, power supply decoupling, and thermal management.
  • To optimize power consumption, use the power management features such as dynamic voltage and frequency scaling, clock gating, and power gating. Additionally, optimize the software to minimize idle time and use low-power modes when possible.
  • The maximum operating temperature range for the 66AK2H05DAAW2 is -40°C to 100°C, as specified in the datasheet. However, it's recommended to operate the device within a temperature range of 0°C to 85°C for optimal performance and reliability.
  • To ensure EMC, follow the guidelines in the '66AK2H05DAAW2 Electromagnetic Compatibility (EMC) Guide' document, which includes recommendations for PCB design, component selection, and shielding.
  • Texas Instruments recommends using the XDS560v2 emulator and the Code Composer Studio (CCS) integrated development environment (IDE) for debugging and testing the 66AK2H05DAAW2.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

66AK2H05DAAW2 Overview

Use the download button to access the 66AK2H05DAAW2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 66AK2, or try a keyword search, such as Microprocessors

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
