Texas Instruments recommends a 4-layer PCB with a solid ground plane and thermal vias to dissipate heat efficiently. A thermal pad on the bottom of the device should be connected to the ground plane.
To ensure reliable operation, it's essential to follow the recommended power-on sequencing, ensure proper voltage regulation, and implement adequate thermal management. Additionally, consider using a thermal shutdown circuit to prevent overheating.
To maintain signal integrity, use controlled impedance routing, minimize trace lengths, and avoid crossing sensitive signals over each other. Also, ensure that the clock signal is routed close to the device and that the signal return path is well-defined.
To minimize power consumption, use the device's power-saving features, such as dynamic voltage and frequency scaling. Additionally, optimize the system's clock frequency, use low-power modes when possible, and consider using a power gating technique.
Texas Instruments recommends performing functional testing, including boundary scan testing, and using tools like JTAG and BIST (Built-In Self-Test) to validate the device's functionality. Additionally, perform thermal and power consumption testing to ensure the device operates within specifications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
66AK2H06DAAW2 Overview

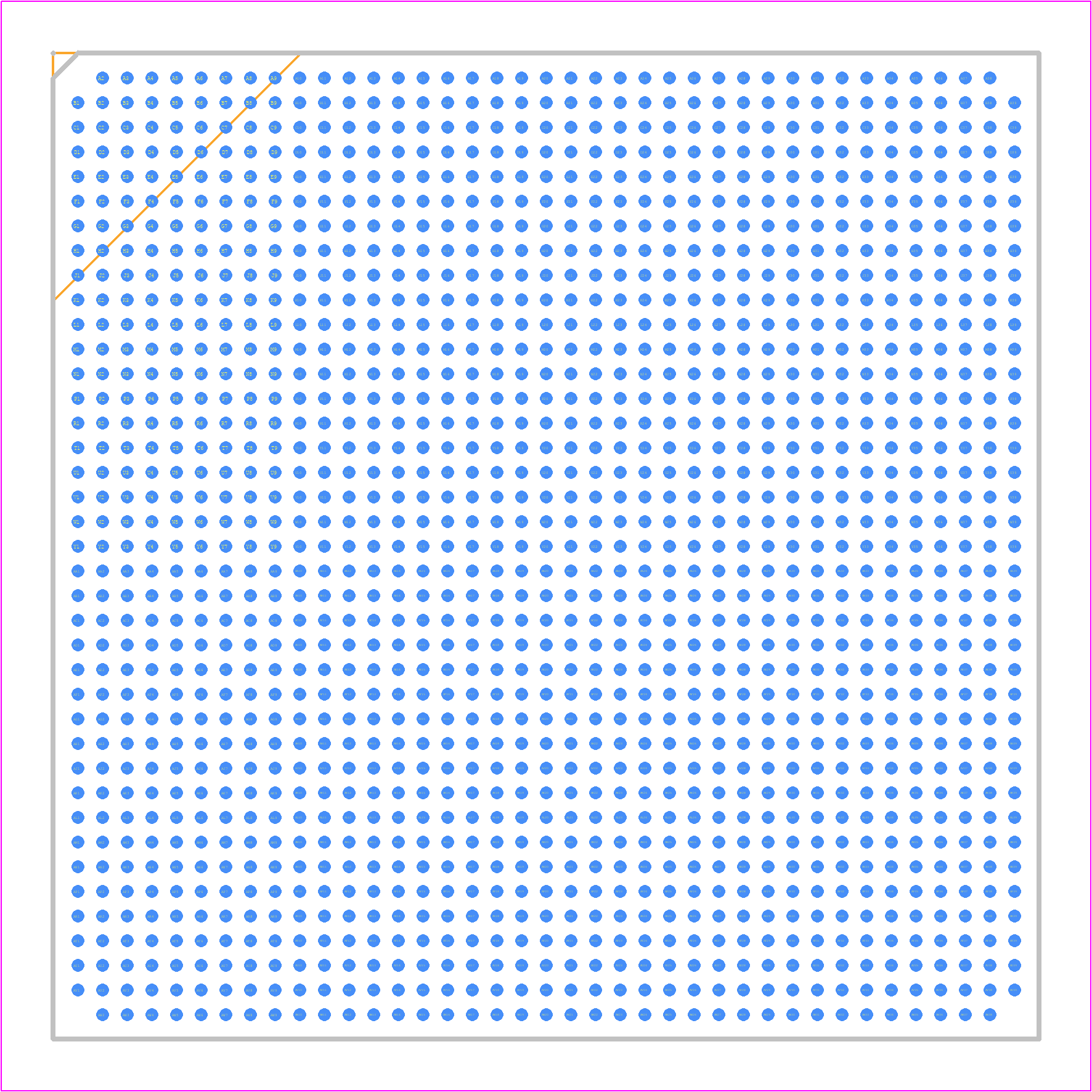

Use the download button to access the 66AK2H06DAAW2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 66AK2,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
