Texas Instruments provides a recommended PCB layout guide in their documentation, which includes guidelines for signal routing, power supply decoupling, and thermal management. It's essential to follow these guidelines to ensure optimal performance, low noise, and minimal electromagnetic interference (EMI).
The 66AK2H12DAAW24 has multiple operating modes, such as turbo mode, low-power mode, and sleep mode. Configuration is done through register programming, and Texas Instruments provides a detailed register map and programming guide in their documentation. Engineers should consult the user's guide and programming manual for specific configuration details.
The 66AK2H12DAAW24 is a high-performance device that generates heat. Thermal management is crucial to ensure reliable operation and prevent overheating. Engineers should consider using heat sinks, thermal interfaces, and thermal vias on the PCB to dissipate heat effectively. Texas Instruments provides thermal design guidelines and junction-to-case thermal resistance (RθJC) values in their documentation.
Signal integrity is critical in high-speed designs like the 66AK2H12DAAW24. Engineers should follow best practices for signal routing, such as using differential pairs, minimizing trace length, and using signal shielding. Additionally, they should consider using signal conditioning components, such as capacitors and resistors, to filter out noise and ensure signal quality.
The 66AK2H12DAAW24 requires a stable power supply to operate correctly. Engineers should ensure that the power supply voltage is within the recommended range, and that the power supply noise is minimized. Decoupling capacitors should be placed close to the device to filter out noise and ensure stable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
66AK2H12DAAW24 Overview

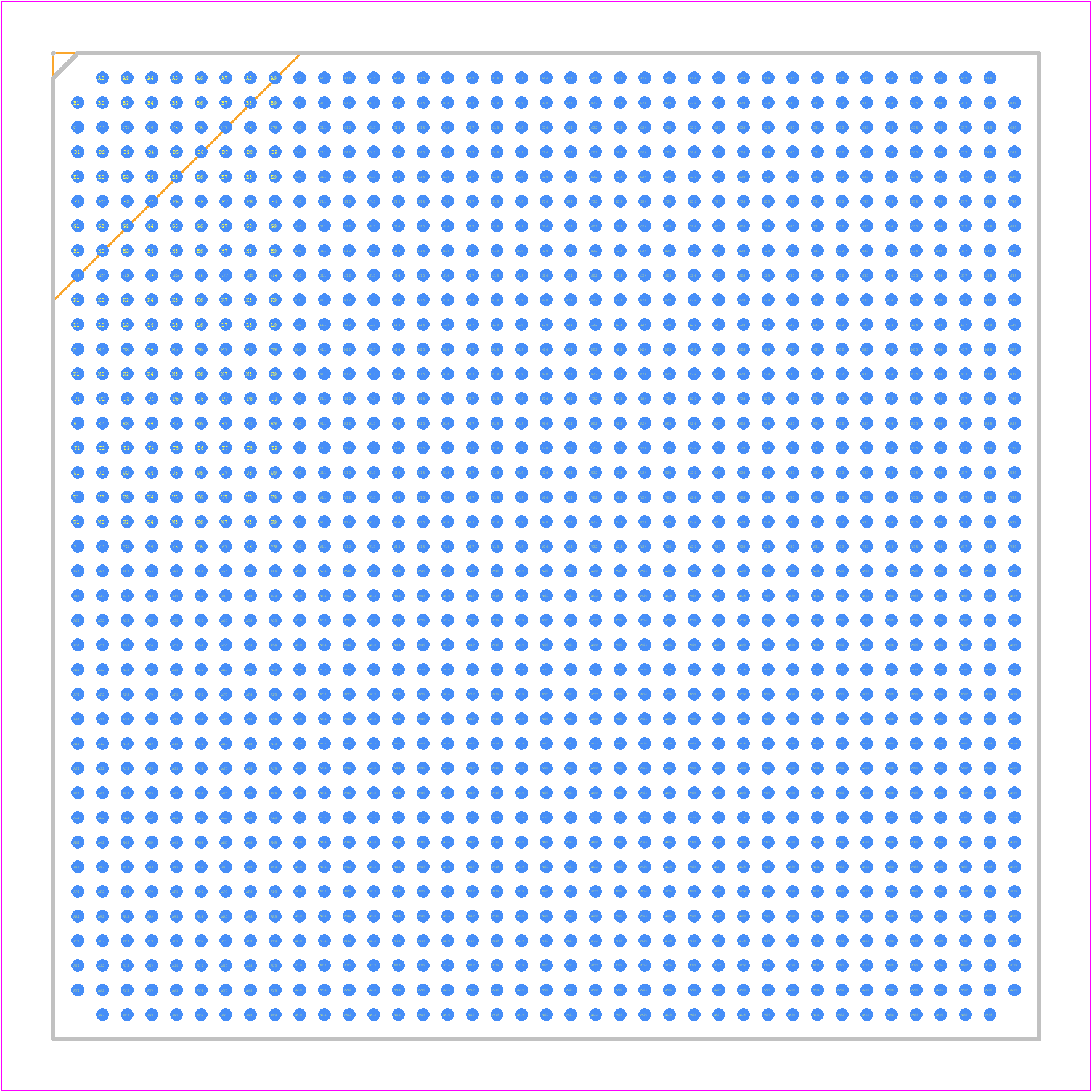

Use the download button to access the 66AK2H12DAAW24 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 66AK2,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
