670M-01ILF - Renesas Electronics

Description: The 670-01 is a high speed, low phase noise, Zero Delay Buffer (ZDB) which integrates IDT's proprietary analog/digital Phase Locked Loop (PLL) techniques. Part of IDT's ClockBlocks™ family, the part's zero delay feature means that the rising edge of the input clock aligns with the rising edges of the outputs giving the appearance of no delay through the device. There are two identical outputs on the chip. The FBCLK should be used to connect to the FBIN. Each output has its own output enable pin. The 670-01

Download 670M-01ILF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

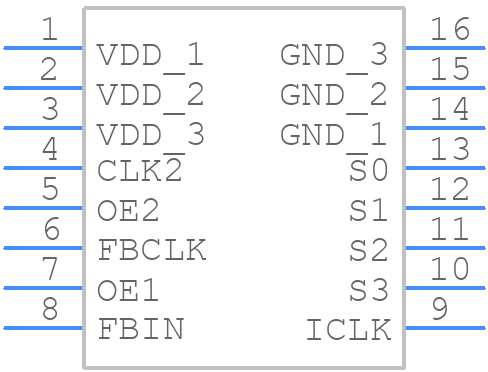

670M-01ILF - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
670M-01ILF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - DCG16--ren1
click to zoom
3D Models
670M-01ILF - Renesas Electronics - 3D model - Small Outline Packages - DCG16--ren1
click to zoom

670M-01ILF Details

  • Manufacturer Part Number:

    670M-01ILF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Manufacturer Package Code:

    DCG16

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Family:

    670

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Max I(ol):

    0.012 A

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of True Outputs:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

  • fmax-Min:

    160 MHz

670M-01ILF Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (R01AN3801EJ0100) which includes thermal vias, thermal pads, and heat sink recommendations to ensure optimal thermal performance.
  • Renesas recommends using an external overcurrent protection circuit, such as a current sense resistor and a comparator, to detect overcurrent conditions. The 670M-01ILF also has a built-in overcurrent detection feature, but it's not enabled by default and requires external circuitry to trigger a shutdown.
  • According to Renesas, the maximum allowed voltage on the VCC pin during power-up and power-down sequences is 7V. Exceeding this voltage may cause damage to the device.
  • Renesas recommends following their EMC design guide (R01AN3802EJ0100) which includes guidelines for PCB layout, component selection, and shielding to minimize electromagnetic interference (EMI) and ensure EMC compliance.
  • The recommended operating temperature range for the 670M-01ILF is -40°C to 125°C. However, the device can operate up to 150°C with derating. It's essential to follow the thermal design guidelines to ensure reliable operation within the specified temperature range.
