670M-01LF - Renesas Electronics

Description: The 670-01 is a high speed, low phase noise, Zero Delay Buffer (ZDB) which integrates IDT's proprietary analog/digital Phase Locked Loop (PLL) techniques. Part of IDT's ClockBlocks™ family, the part's zero delay feature means that the rising edge of the input clock aligns with the rising edges of the outputs giving the appearance of no delay through the device. There are two identical outputs on the chip. The FBCLK should be used to connect to the FBIN. Each output has its own output enable pin. The 670-01

Download 670M-01LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

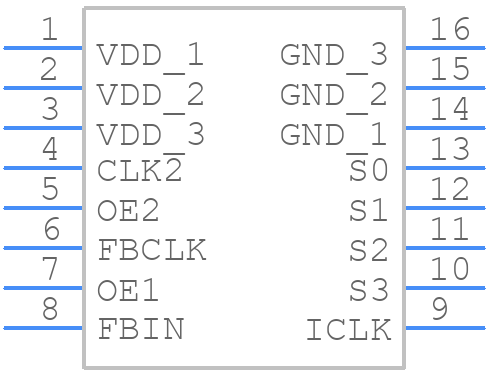

670M-01LF - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
670M-01LF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-16
click to zoom
3D Models
670M-01LF - Renesas Electronics - 3D model - Small Outline Packages - SOIC-16
click to zoom

670M-01LF Details

  • Manufacturer Part Number:

    670M-01LF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Manufacturer Package Code:

    DCG16

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Family:

    670

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Max I(ol):

    0.012 A

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of True Outputs:

    1

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

  • fmax-Min:

    160 MHz

670M-01LF Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (AN1844) for the 670M-01LF, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
  • Renesas recommends using an external overcurrent protection circuit, such as a current sense resistor and a comparator, to detect overcurrent conditions. The 670M-01LF also has a built-in overcurrent detection feature, but it's not enabled by default and requires external components to function.
  • Although the datasheet doesn't specify a maximum voltage for the EN pin, Renesas recommends keeping it within the range of 0V to VCC (typically 5V) to ensure proper operation and prevent damage to the device.
  • While the 670M-01LF is rated for operation up to 125°C, Renesas recommends derating the device's power dissipation and voltage ratings at higher temperatures to ensure reliability and prevent thermal runaway. Consult the datasheet and application notes for specific guidelines.
  • Renesas provides a troubleshooting guide in their application note (AN1845) for the 670M-01LF, which covers common issues such as output voltage deviations, oscillations, and shutdown problems. The guide includes step-by-step procedures for identifying and resolving these issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
