670M-02LF - Renesas Electronics

Description: The ICS670-02 is a high speed, low phase noise, Zero Delay Buffer (ZDB) which integrates IDT’s proprietary analog/digital Phase Locked Loop (PLL) techniques. Part of IDT’s ClockBlocksTM family, the part’s zero delay feature means that the rising edge of the input clock aligns with the rising edges of the outputs giving the appearance of no delay through the device. There are two identical outputs on the chip. The FBCLK should be used to connect to the FBIN. Each output has its own output enable pin. The ICS

Download 670M-02LF Model

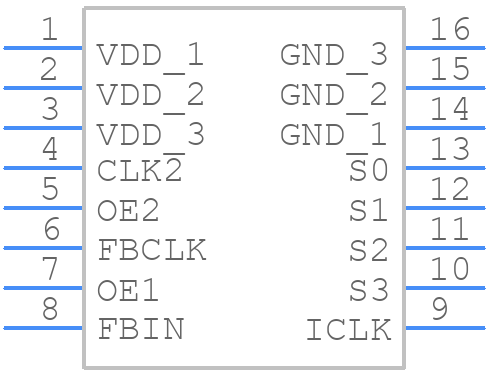

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
670M-02LF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 16 Ld SOIC
click to zoom
3D Models
670M-02LF - Renesas Electronics  - 3D model - Small Outline Packages - 16 Ld SOIC
click to zoom

670M-02LF Details

  • Manufacturer Part Number:

    670M-02LF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    DCG16

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-609 Code:

    e3

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Moisture Sensitivity Level:

    3

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    TIN

670M-02LF Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes thermal vias, copper pours, and component placement guidelines to ensure optimal thermal performance.
  • Renesas recommends using an external overcurrent protection circuit, such as a current sense resistor and a comparator, to detect overcurrent conditions and trigger a shutdown or warning signal. The datasheet provides guidelines for selecting the current sense resistor value.
  • Although the datasheet doesn't specify a maximum voltage for the EN pin, Renesas recommends keeping it within the VCC voltage range (typically 3.3V or 5V) to ensure proper operation and prevent damage to the device.
  • While the 670M-02LF is rated for operation up to 125°C, Renesas recommends derating the device's performance and power dissipation at high temperatures. Consult the datasheet and application notes for guidance on thermal management and derating.
  • Renesas provides EMC guidelines in their application notes, including recommendations for PCB layout, component selection, and shielding to minimize electromagnetic interference (EMI) and ensure compliance with regulatory standards.
