The recommended operating temperature range for the 671M-01LF is -40°C to 125°C, but it can tolerate storage temperatures from -55°C to 150°C.
To ensure proper power-on and power-off, follow the recommended power-up and power-down sequences in the datasheet, and make sure to provide a stable power supply with minimal noise and ripple.
The maximum allowable voltage on the input pins is 5.5V, but it's recommended to keep the input voltage within the specified operating range to ensure reliable operation.
To handle ESD protection, follow proper handling and storage procedures, use ESD-protective packaging, and consider adding external ESD protection devices or circuits to the design.
The typical propagation delay for the 671M-01LF is around 10ns, but this can vary depending on the specific application, operating conditions, and output load.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
671M-01LF Overview

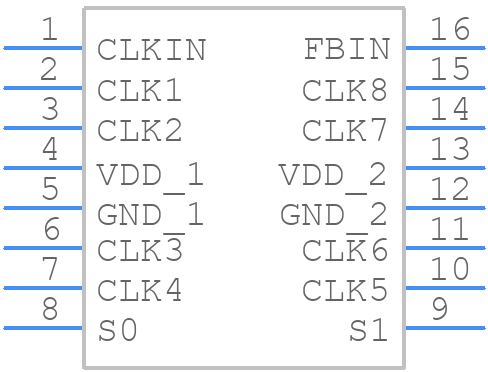

Use the download button to access the 671M-01LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 671M-,
or try a keyword search, such as Clock Drivers
