Please enter a minimum 3 letters or numbers
Technical Content
Part Image

681M13W6103L001 - NorComp

Description: D-Sub Mixed Contact Connectors STD POWER-D 13W6 40A VERT MALE

Download 681M13W6103L001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
681M13W6103L001 - NorComp - PCB symbol
click to zoom
PCB Footprints

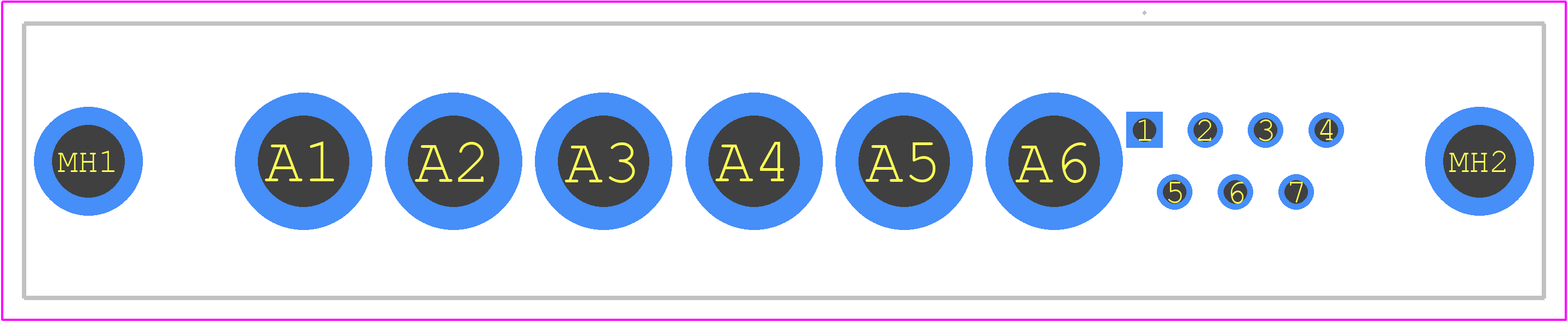

681M13W6103L001 - NorComp PCB footprint - Other - Other - 681M13W6103L001-1
click to zoom
3D Models
681M13W6103L001 - NorComp - 3D model - Other - 681M13W6103L001-1
click to zoom

681M13W6103L001 Details

  • Manufacturer Part Number:

    681M13W6103L001

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    NorComp

  • YTEOL:

    8.77

  • Board Mounting Option:

    HOLE 0.13

  • Body Breadth:

    0.492 inch

  • Body Depth:

    0.252 inch

  • Body Length:

    2.732 inch

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Arrangement:

    S7P6

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    MIXED

  • Contact Resistance:

    10 mΩ

  • Contact Style:

    HYBRID

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insertion Force-Max:

    44.127 N

  • Insulation Resistance:

    5000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • Mating Contact Pitch:

    0.109 inch

  • Mating Contact Row Spacing:

    0.112 inch

  • Mixed Contacts:

    YES

  • Mounting Option 1:

    HOLE 0.12

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD AND PANEL

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    MIXED

  • PCB Contact Row Spacing:

    2.84 mm

  • Plating Thickness:

    FLASH inch

  • Rated Current (Power):

    40 A

  • Rated Current (Signal):

    5 A

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    STEEL

  • Shell Size:

    4/C

  • Terminal Length:

    0.218 inch

  • Terminal Pitch:

    2.76 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    13

  • UL Flammability Code:

    94V-0

  • Withdrawl Force-Min:

    2.942 N

681M13W6103L001 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is typically between 0.5-1.5 Nm (7-21 in-lbs), but it's best to consult the manufacturer's application notes or contact NorComp directly for specific guidance.
  • Yes, the contacts are gold-plated. The thickness of the plating is typically 0.76 μm (30 μin) minimum, but this may vary depending on the specific product and manufacturing batch. It's best to consult the manufacturer's documentation or contact NorComp directly for more information.
  • The operating temperature range for the 681M13W6103L001 connector is typically -55°C to 125°C (-65°F to 257°F), but this may vary depending on the specific application and environmental conditions. It's best to consult the manufacturer's documentation or contact NorComp directly for more information.
  • The 681M13W6103L001 connector is designed to meet the requirements of MIL-DTL-55302, which includes testing for vibration and shock. However, the specific performance in high-vibration or high-shock applications may vary depending on the specific design and implementation. It's best to consult the manufacturer's documentation or contact NorComp directly for more information.
  • The 681M13W6103L001 connector is designed to meet the requirements of MIL-DTL-55302, which includes testing for environmental resistance. However, the specific performance in harsh environments may vary depending on the specific design and implementation. It's best to consult the manufacturer's documentation or contact NorComp directly for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

681M13W6103L001 Overview

Use the download button to access the 681M13W6103L001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 681M1, or try a keyword search, such as D Type Connectors

Parts related to 681M13W6103L001

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑
