681S13W3203L001 - NorComp

Description: D-Sub Mixed Contact Connectors IP67 POWER-D 13w3PWR 40A VERT FEM

Download 681S13W3203L001 Model

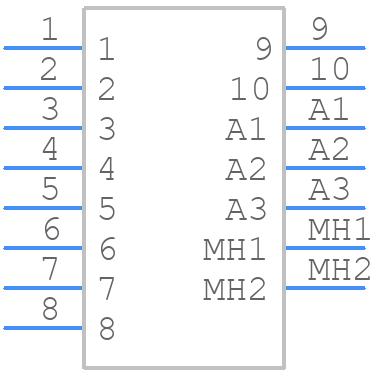

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

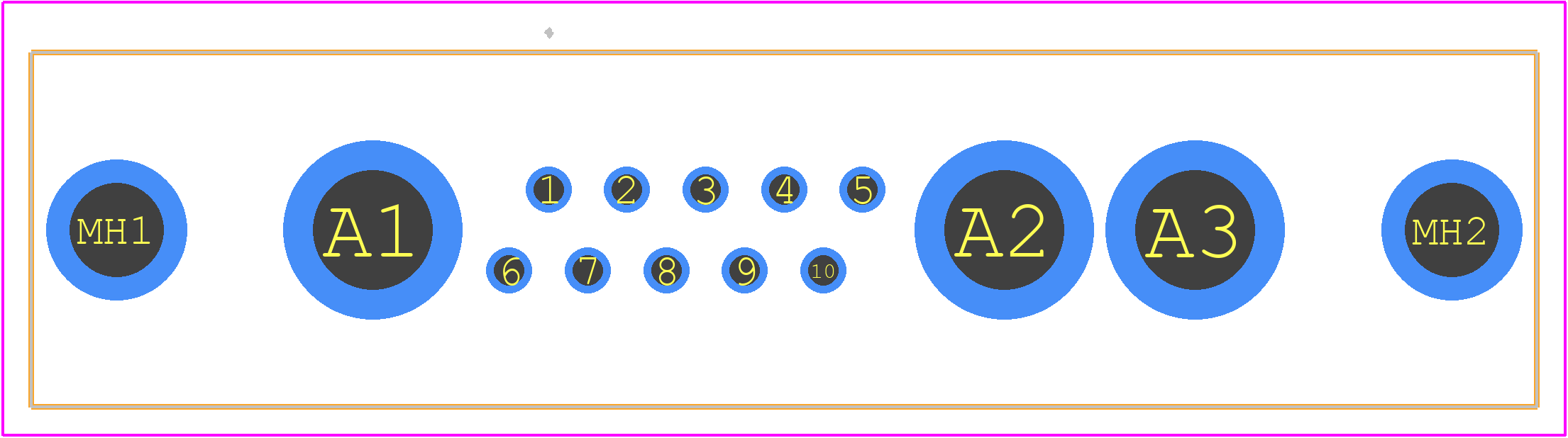

PCB Footprints
681S13W3203L001 - NorComp PCB footprint - Other - Other - 681S13W3203L001-2
click to zoom
3D Models
681S13W3203L001 - NorComp  - 3D model - Other - 681S13W3203L001-2
click to zoom

681S13W3203L001 Details

  • Manufacturer Part Number:

    681S13W3203L001

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    NorComp

  • YTEOL:

    8.5

  • Additional Feature:

    IP67

  • Board Mounting Option:

    HOLE .13

  • Body Breadth:

    0.492 inch

  • Body Depth:

    0.283 inch

  • Body Length:

    2.089 inch

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Arrangement:

    S10P3

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    MIXED

  • Contact Resistance:

    10 mΩ

  • Contact Style:

    RND PIN-SKT

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insertion Force-Max:

    44.12 N

  • Insulation Resistance:

    5000000000 Ω

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e4

  • Mating Contact Row Spacing:

    0.112 inch

  • Mixed Contacts:

    YES

  • Mounting Option 1:

    HOLE 0.12

  • Mounting Option 2:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    MIXED

  • PCB Contact Row Spacing:

    2.84 mm

  • Plating Thickness:

    FLASH inch

  • Rated Current (Power):

    40 A

  • Rated Current (Signal):

    5 A

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    STEEL

  • Shell Size:

    3/B

  • Terminal Length:

    0.22 inch

  • Terminal Pitch:

    2.77 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    13

  • UL Flammability Code:

    94V-0

  • Withdrawl Force-Min:

    2.942 N

681S13W3203L001 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is typically between 0.5-1.5 Nm (7-21 in-lbs), but it's best to consult the manufacturer's application notes or contact NorComp directly for specific guidance.
  • Yes, the contacts are gold-plated. The thickness of the plating is typically 0.76 μm (30 μin) minimum, but this may vary depending on the specific product and manufacturing batch. It's best to consult the manufacturer's documentation or contact NorComp directly for more information.
  • The operating temperature range for the 681S13W3203L001 connector is typically -55°C to 125°C (-65°F to 257°F), but this may vary depending on the specific application and environmental conditions. It's best to consult the manufacturer's documentation or contact NorComp directly for more information.
  • The 681S13W3203L001 connector is designed to meet the requirements of MIL-DTL-55302, which includes testing for vibration and shock. However, the suitability of the connector for specific high-vibration or high-shock applications should be evaluated on a case-by-case basis, taking into account factors such as the amplitude and frequency of the vibration or shock, as well as the connector's mounting and wiring configuration.
  • The 681S13W3203L001 connector is designed to meet the requirements of MIL-DTL-55302, which includes testing for environmental resistance. However, the suitability of the connector for specific harsh environments should be evaluated on a case-by-case basis, taking into account factors such as the severity of the environment, the connector's sealing and shielding, and the materials used in its construction.
