681S3W3203L001 - NorComp

Description: Norcomp 3 Way Vertical PCB D-sub Connector Socket

Download 681S3W3203L001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
681S3W3203L001 - NorComp - PCB symbol
click to zoom
PCB Footprints

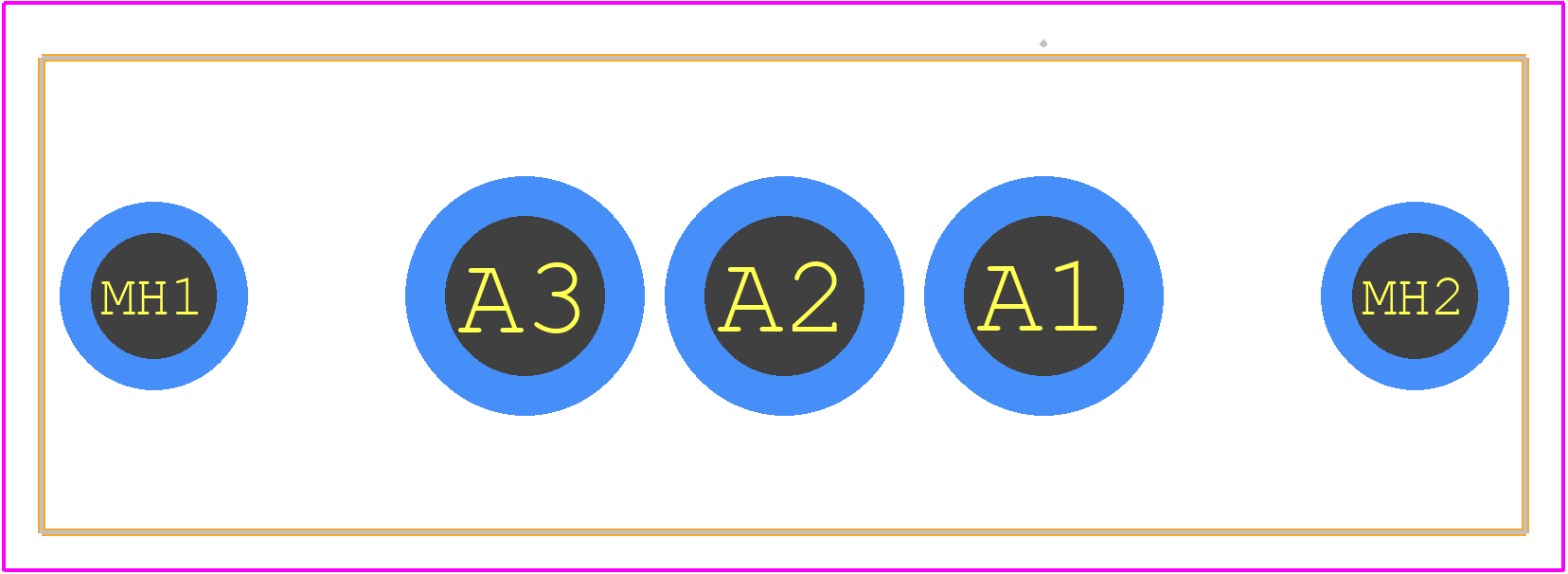

681S3W3203L001 - NorComp PCB footprint - Other - Other - 681S3W3203L001-2
click to zoom
3D Models
681S3W3203L001 - NorComp - 3D model - Other - 681S3W3203L001-2
click to zoom

681S3W3203L001 Details

  • Manufacturer Part Number:

    681S3W3203L001

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    NorComp

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e4
