684M13W6103L461 - NorComp

Description: NORCOMP - 684M13W6103L461 - CONNECTOR, D SUB COMB, PLUG, DC-13W6

Download 684M13W6103L461 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
684M13W6103L461 - NorComp - PCB symbol
click to zoom

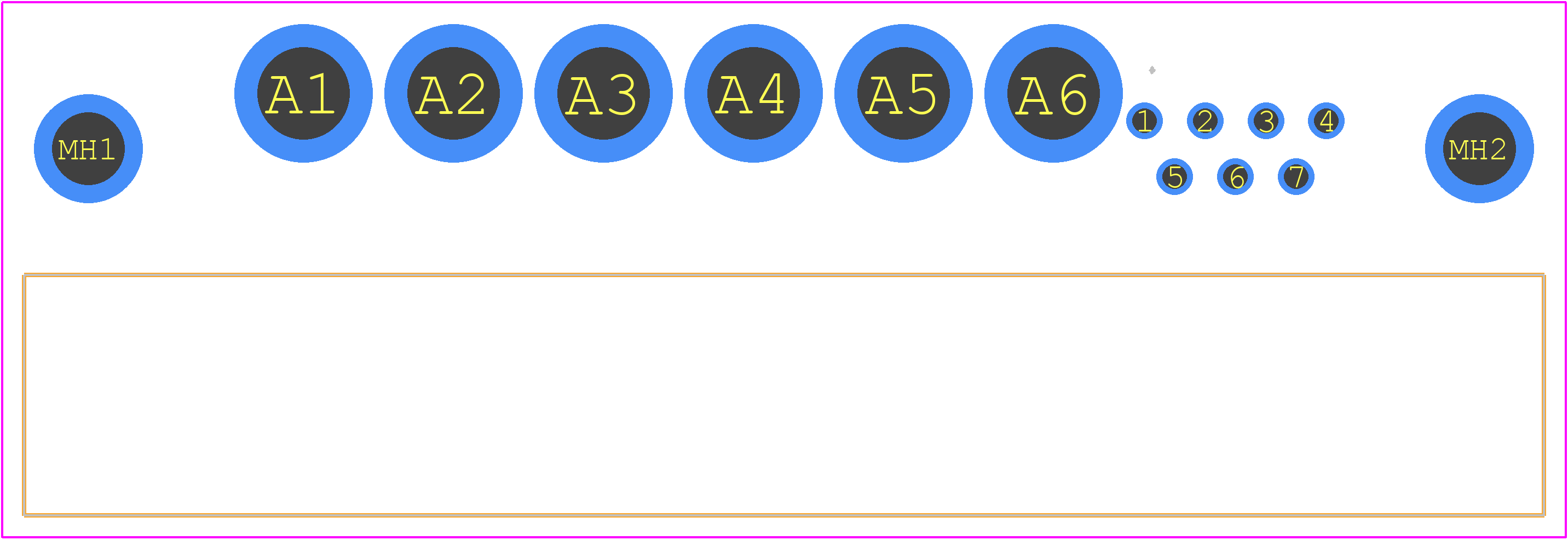

PCB Footprints
684M13W6103L461 - NorComp PCB footprint - Other - Other - 684M13W6103L461-1
click to zoom
3D Models
684M13W6103L461 - NorComp - 3D model - Other - 684M13W6103L461-1
click to zoom

684M13W6103L461 Details

  • Manufacturer Part Number:

    684M13W6103L461

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    NorComp

  • YTEOL:

    8.77

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE/POLYETHYLENE

  • MIL Conformance:

    NO

  • Mixed Contacts:

    YES

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    NICKEL

  • Shell Material:

    STEEL

  • Shell Size:

    4/C

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    13

  • UL Flammability Code:

    94V-0

684M13W6103L461 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-1.5 Nm (4-12 in-lbs) for the screw threads, but it's always best to consult the specific application requirements and environmental conditions.
  • Yes, the 684M13W6103L461 is designed to withstand vibrations and shocks, but it's essential to ensure proper mounting and secure fastening to prevent damage or disconnection.
  • The operating temperature range for the 684M13W6103L461 is -55°C to 125°C (-133°F to 257°F), but it's crucial to consider the specific application and environmental conditions to ensure reliable performance.
  • Yes, the 684M13W6103L461 is designed to be environmentally sealed and can withstand exposure to moisture, dust, and other contaminants, but it's essential to follow proper installation and maintenance procedures.
  • The mating cycle life of the 684M13W6103L461 is typically 500-1000 cycles, but this can vary depending on the specific application, environmental conditions, and maintenance practices.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

684M13W6103L461 Overview

Use the download button to access the 684M13W6103L461 schematic symbol, PCB footprint, and 3D model.
