The recommended torque value for the screw terminals is typically between 0.5-1.5 Nm (7-21 in-lbs), but it's best to consult the manufacturer's application notes or contact NorComp directly for specific guidance.
Yes, the 684M17W2203L461 is designed to meet the requirements of MIL-DTL-5015, which includes vibration testing. However, it's essential to ensure that the connector is properly mounted and secured to withstand the specific vibration levels in your application.
The 684M17W2203L461 is rated for operation from -55°C to +125°C, but it's crucial to consider the temperature rating of the specific materials used in your application, such as the wire insulation and potting compounds, to ensure compatibility.
While the 684M17W2203L461 is designed to be rugged and reliable, it's not intended for direct exposure to saltwater or harsh chemicals. If your application requires exposure to such environments, you may need to consider additional protection measures, such as conformal coating or hermetic sealing.
It's possible to use the 684M17W2203L461 with a different wire gauge or type, but you'll need to ensure that the wire meets the connector's electrical and mechanical requirements. Consult NorComp's application notes or contact their technical support for guidance on wire selection and compatibility.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
684M17W2203L461 Overview

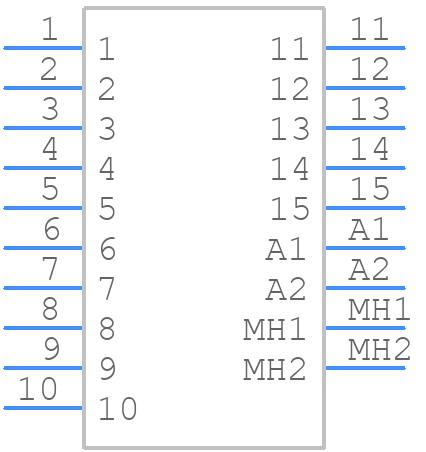

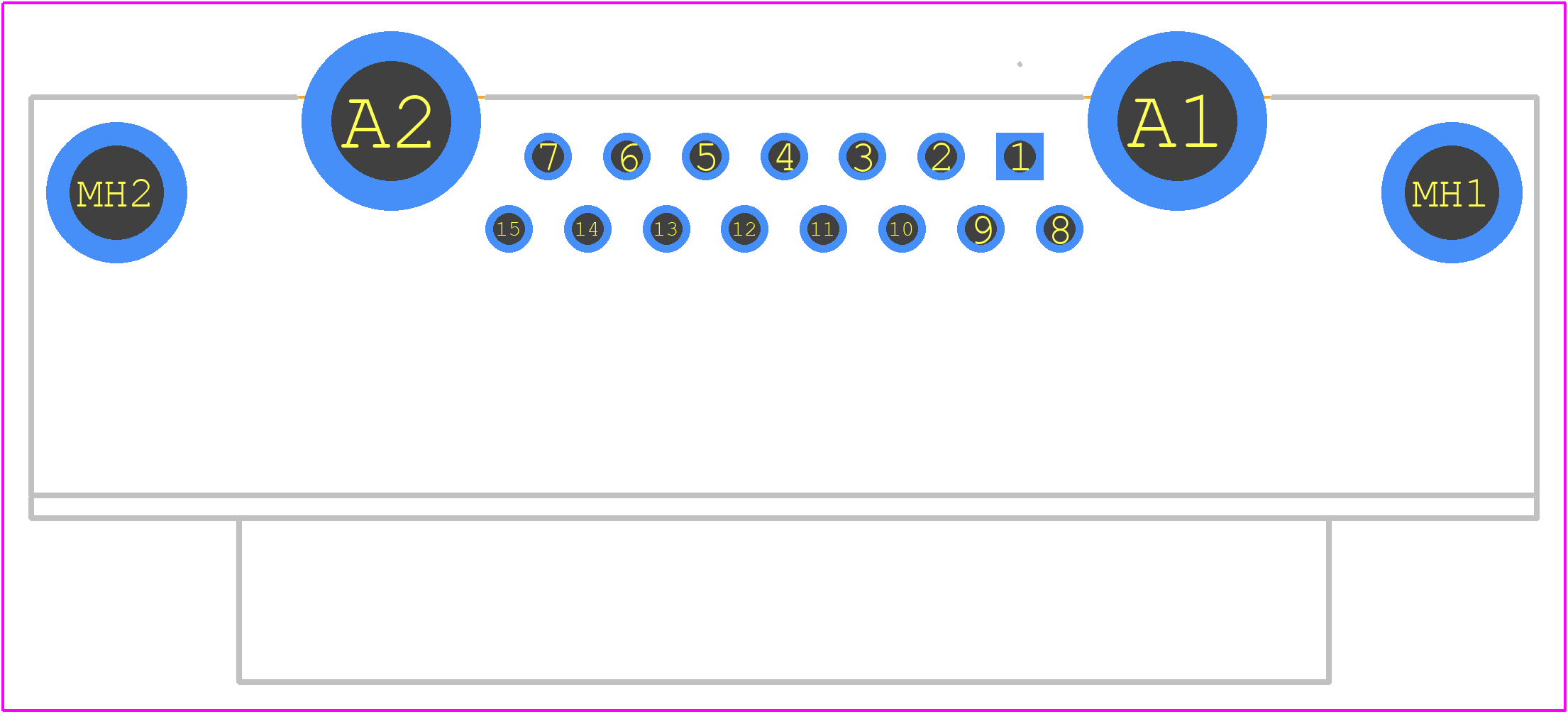

Use the download button to access the 684M17W2203L461 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 684M1,
or try a keyword search, such as D Type Connectors
