684M3W3K103L461 - NorComp

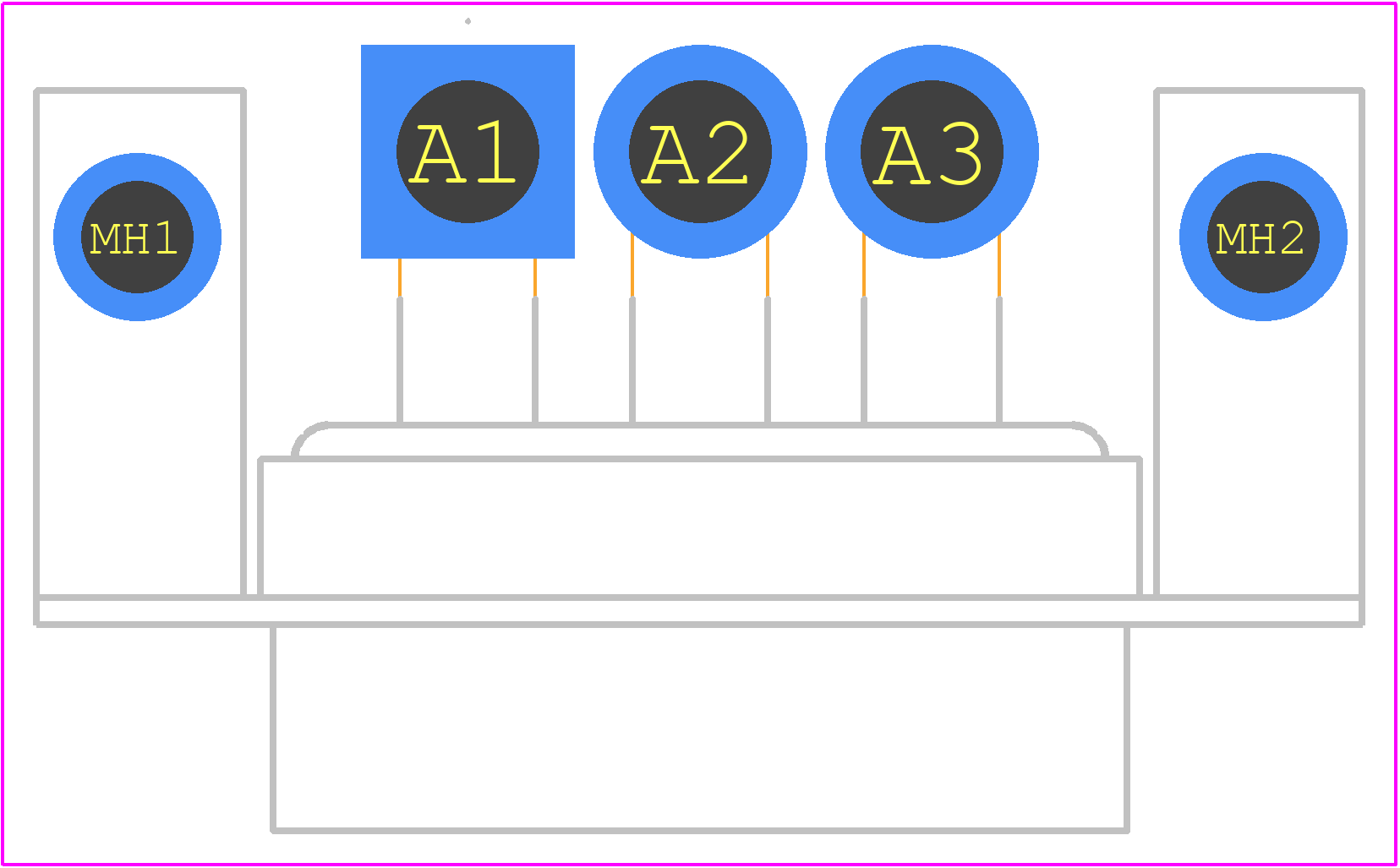

684M3W3K103L461 Details

• Manufacturer Part Number:

  684M3W3K103L461

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  NorComp

• YTEOL:

  8.5

• Board Mounting Option:

  SPLIT BOARD LOCK

• Body Breadth:

  0.492 inch

• Body Depth:

  0.551 inch

• Body Length:

  1.543 inch

• Connector Type:

  D SUBMINIATURE CONNECTOR

• Contact Gender:

  MALE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  2 mΩ

• Contact Style:

  RND PIN-SKT

• Empty Shell:

  NO

• Filter Feature:

  NO

• Insertion Force-Max:

  44.12 N

• Insulation Resistance:

  5000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  POLYBUTYLENE TEREPHTHALATE

• Mating Contact Pitch:

  0.27 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  #4-40

• Mounting Option 2:

  THREADED INSERT

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD AND PANEL

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  1

• Number of Rows Loaded:

  1

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• Plating Thickness:

  FLASH inch

• Rated Current (Power):

  40 A

• Reference Standard:

  UL

• Shell Finish:

  NICKEL

• Shell Material:

  STEEL

• Shell Size:

  2/A

• Terminal Length:

  0.185 inch

• Terminal Pitch:

  6.86 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  3

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  2.942 N
