Part Image

685M17W2203L461 - NorComp

Description: 17 (15 + 2 Coax) Position D-Sub, Combo Receptacle, Female Sockets Connector

Download 685M17W2203L461 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

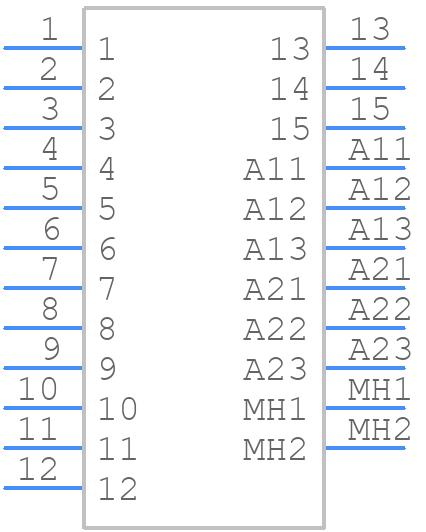

Symbol
685M17W2203L461 - NorComp - PCB symbol
click to zoom

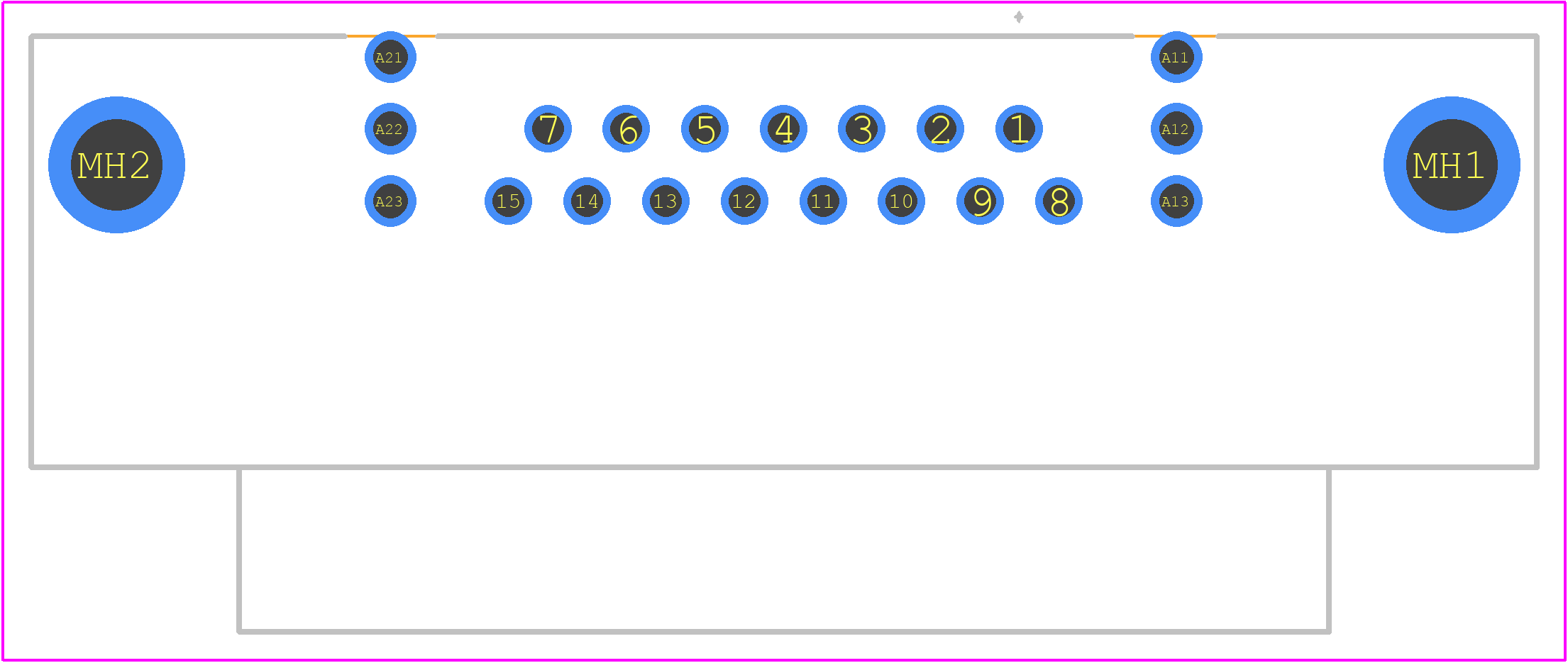

PCB Footprints
685M17W2203L461 - NorComp PCB footprint - Other - Other - 685M17W2203L461-1
click to zoom
3D Models
685M17W2203L461 - NorComp - 3D model - Other - 685M17W2203L461-1
click to zoom

685M17W2203L461 Details

  • Manufacturer Part Number:

    685M17W2203L461

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    NorComp

  • YTEOL:

    8.77

  • Board Mounting Option:

    SPLIT BOARD LOCK

  • Body Breadth:

    0.492 inch

  • Body Depth:

    0.57 inch

  • Body Length:

    2.089 inch

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Arrangement:

    S15C2

  • Contact Gender:

    FEMALE

  • Contact Pattern:

    STAGGERED

  • Contact Resistance:

    10 mΩ

  • Contact Style:

    RND PIN-SKT

  • Dielectric Withstanding Voltage:

    1414VAC V

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insertion Force-Max:

    44.13 N

  • Insulation Resistance:

    5000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • Mating Contact Pitch:

    0.109 inch

  • Mixed Contacts:

    YES

  • Mounting Option 1:

    #4-40

  • Mounting Option 2:

    THREADED INSERT

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    1.27 mm

  • Plating Thickness:

    FLASH inch

  • Rated Current (Signal):

    5 A

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    STEEL

  • Shell Size:

    3/B

  • Terminal Length:

    0.157 inch

  • Terminal Pitch:

    2.77 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    17

  • UL Flammability Code:

    94V-0

  • Withdrawl Force-Min:

    2.942 N

685M17W2203L461 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is typically between 0.5-1.5 Nm (7-21 in-lbs), but it's best to consult the manufacturer's application notes or contact NorComp directly for specific guidance.
  • Yes, the 685M17W2203L461 is designed to withstand vibrations and shocks, but it's essential to ensure proper mounting and secure the connector to the PCB or panel to prevent damage. Consult NorComp's environmental testing data and application notes for more information.
  • The 685M17W2203L461 is rated for operation in temperatures ranging from -40°C to +125°C (-40°F to +257°F), but derating may be necessary for high-temperature applications. Consult the datasheet and NorComp's application notes for specific guidance.
  • The 685M17W2203L461 has a sealed construction and is designed to meet IP67 or IP69K ratings, making it suitable for use in harsh environments. However, it's essential to consult NorComp's environmental testing data and application notes to ensure the connector meets the specific requirements of your application.
  • It's possible to use the 685M17W2203L461 with a different wire gauge or type, but it's crucial to ensure the wire meets the connector's specifications and ratings. Consult NorComp's application notes and wire compatibility charts to ensure proper compatibility and performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

685M17W2203L461 Overview

Use the download button to access the 685M17W2203L461 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 685M1, or try a keyword search, such as D Type Connectors
