Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 685M3W3103L461
- Part Number 685M3W3103L461
- Manufacturer NorComp
- Pin Count 11
- Part Category Connector
- Package Category Other

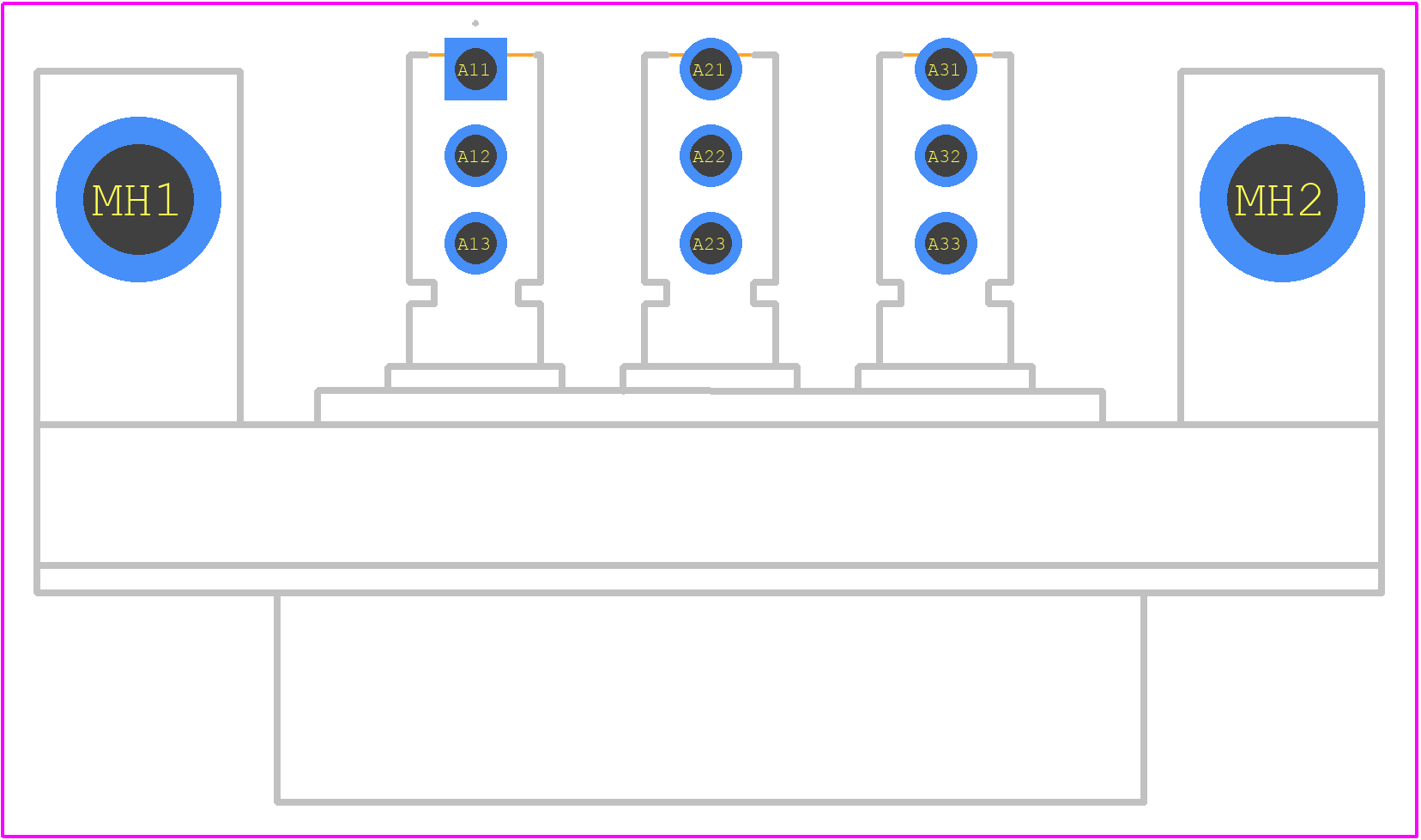

- Footprint Name Other - 685M3W3103L461-1
- Released Date Jan 10, 2024
- Last Modified Date Feb 6, 2024 11:39 PM UTC
- Pinout / Pin List Click Here (Member Only)
685M3W3103L461 Details
-
Manufacturer Part Number:
685M3W3103L461
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Manufacturer:
NorComp
-
Connector Type:
D SUBMINIATURE CONNECTOR
-
Contact Finish Termination:
GOLD FLASH
Trust Checks
Community Provided
System Verified
Community Approved
685M3W3103L461 Overview
Use the download button to access the 685M3W3103L461 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 685M3,
or try a keyword search, such as D Type Connectors
