6ED003L06-F2 - Infineon

Description: Infineon 6ED003L06-F2, Hex MOSFET Power Driver 420mA Full Bridge, 13 → 17.5 V, Non-Inverting, 28-Pin DSO

Download 6ED003L06-F2 Model

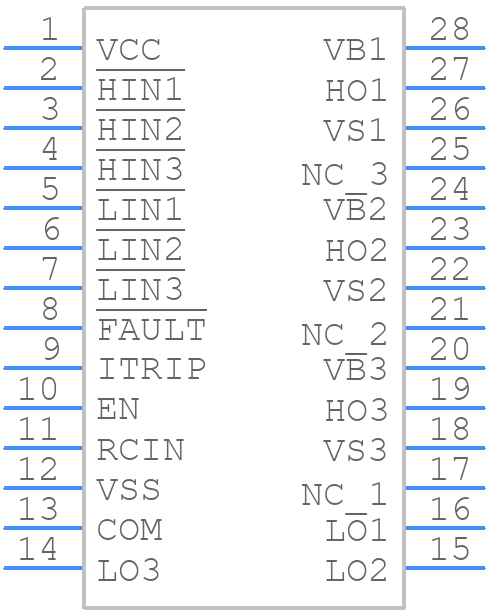

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
6ED003L06-F2 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - PG-TSSOP-28
click to zoom
3D Models
6ED003L06-F2 - Infineon  - 3D model - Small Outline Packages - PG-TSSOP-28
click to zoom

6ED003L06-F2 Details

  • Manufacturer Part Number:

    6ED003L06-F2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Pin Count:

    28

  • Country Of Origin:

    Indonesia, Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    3

  • Interface IC Type:

    FULL BRIDGE BASED IGBT/MOSFET DRIVER

  • Moisture Sensitivity Level:

    3

  • Qualification Status:

    Not Qualified

  • Terminal Finish:

    Nickel/Gold/Palladium/Silver (Ni/Au/Pd/Ag)

6ED003L06-F2 Frequently Asked Questions (FAQs)

  • Infineon recommends a PCB layout with a large copper area for heat dissipation, and a minimum of 2oz copper thickness. A thermal via array under the device can also improve heat dissipation.
  • Ensure proper heat sinking, use a thermally conductive material for the PCB, and consider using a heat sink or fan for cooling. Also, follow the recommended operating temperature range and derate the device's power handling accordingly.
  • The 6ED003L06-F2 has built-in ESD protection, but it's still recommended to follow standard ESD handling precautions during assembly and handling. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-safe environment.
  • The 6ED003L06-F2 is a qualified automotive-grade device, but for high-reliability or safety-critical applications, additional testing and validation may be required. Consult with Infineon's technical support and follow relevant industry standards (e.g., ISO 26262, IEC 61508).
  • Follow the recommended soldering temperature profile and assembly guidelines provided in the datasheet. Use a solder with a melting point above 217°C, and ensure that the device is properly cleaned and dried before assembly.
